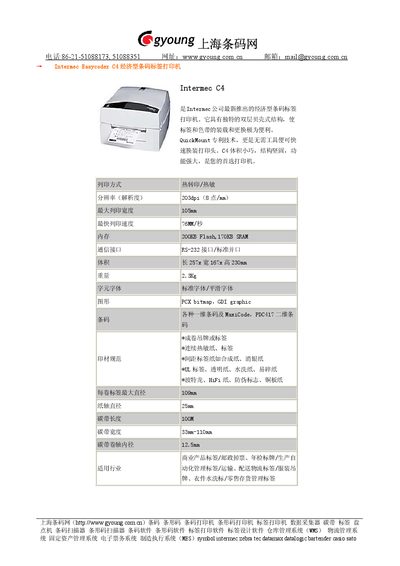

The document introduces the product information of Shanghai Barcode Network, including barcode printers, label printers, barcode scanners, etc. It highlights the features of Intermec Easycoder C4 economical barcode label printer, such as its unique double-layer shell structure, quick replacement of print head, etc.
The Intermec C4 (EasyCoder) features a dual‑shell construction that makes loading and changing labels and ribbons easy, and its QuickMount patented technology allows tool‑free head replacement. Its small footprint and sturdy build make it suitable for a variety of labeling tasks.
Key specifications include 203 dpi (8 dot/mm) resolution, a maximum print width of 105 mm, and a print speed of 76 mm/s. It provides 200 KB Flash and 170 KB SRAM memory, RS‑232 and standard parallel communication ports, dimensions of 257 × 167 × 230 mm, and a weight of 2.3 kg. The printer supports thermal transfer and direct thermal modes, a wide range of media types, and common 1‑D barcodes as well as MaxiCode and PDC417 2‑D codes. This manual is written in Chinese.
| Resolution | 203 dpi (8 dot/mm) |
|---|---|
| Memory | 200 KB Flash, 170 KB SRAM |
| Communication Interface | RS‑232 and standard parallel |
| Dimensions (L×W×H) | 257 × 167 × 230 mm |
| Supported Media Width | 33 mm–110 mm |
The printer provides an RS‑232 serial port and a standard parallel port.
