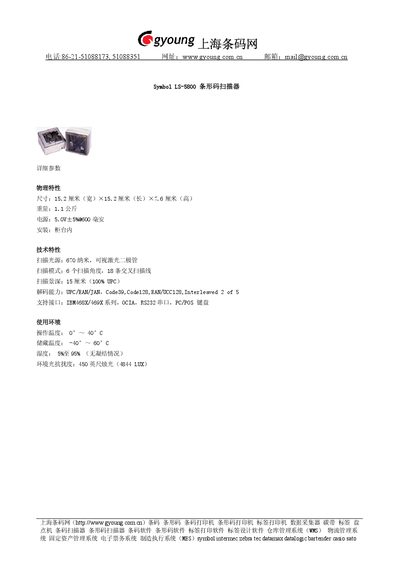

Shanghai Barcode Network provides detailed parameters of Symbol LS-5800 barcode scanner, including scanning light source, scanning mode, scanning depth, decoding capability, supported interface, and operating environment
The Symbol LS-5800 is a countertop barcode scanner designed for retail and logistics environments. It uses a 670 nm visible laser diode and offers multiple scanning angles for reliable reading of a variety of symbologies.
Key specifications include a compact size of 15.2 × 15.2 × 7.6 cm, 1.1 kg weight, 5 V power supply at 600 mA, and support for UPC/EAN, Code 39, Code 128, and Interleaved 2‑of‑5. The device operates from 0 °C to 40 °C, tolerates storage temperatures from –40 °C to 60 °C, and functions in humidity up to 95 % non‑condensing. This manual is written in Chinese.
| Size (W×L×H) | 15.2 cm × 15.2 cm × 7.6 cm |
|---|---|
| Weight | 1.1 kg |
| Power Supply | 5.0 V ±5 % @ 600 mA |
| Scan Source | 670 nm visible laser diode |
| Scan Mode | 6 angles, 18 cross‑scan lines |
| Scan Depth | 15 cm (100 % UPC) |
| Decoding Capability | UPC/EAN, Code 39, Code 128, Interleaved 2‑of‑5 |
| Supported Interfaces | IBWM468X/469X series, USB, RS232, PC/PO0S keyboard |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -40 °C to 60 °C |
| Humidity | 5 % to 95 % non‑condensing |
| Ambient Light Immunity | 450 ft‑candle (≈4844 lux) |
The scanner measures 15.2 cm wide, 15.2 cm long, and 7.6 cm high, and it weighs 1.1 kg.
It can decode UPC/EAN, Code 39, Code 128, and Interleaved 2‑of‑5.
The device operates from 0 °C up to 40 °C.
It requires a 5 V supply with a tolerance of ±5 % and draws up to 600 mA.
