SATO HT200e is a thermal transfer/direct thermal barcode printer with a maximum print range of 48mm(W)×96mm(L), a print resolution of 203dpi (8 pixels/mm) and a printing speed of 60 mm/sec (using a battery) or 80 mm/sec (using AC)
The SATO HT200e is a barcode printer that offers both thermal transfer and direct thermal printing. It provides a maximum print area of 48 mm × 96 mm with a resolution of 203 dpi (8 pixels/mm) and can print at 60 mm/s on battery power or 80 mm/s on AC power.

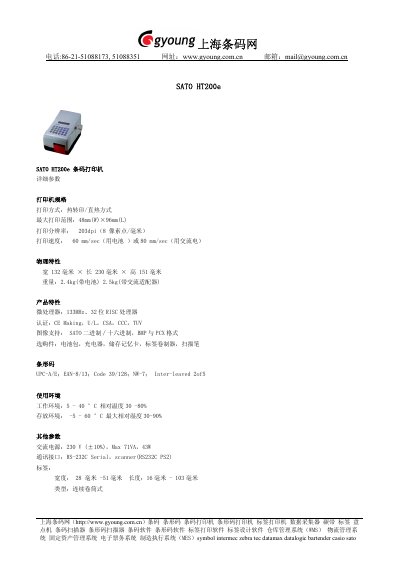

Physical dimensions are 132 mm × 230 mm × 151 mm, weighing 2.4 kg with battery or 2.5 kg with AC adapter. The printer includes a 133 MHz 32‑bit RISC processor, CE, CSA, CCC, and TUV certifications, and supports a range of barcode symbologies such as UPC‑A/E, EAN‑8/13, Code 39/128, NW‑7, and Interleaved 2‑of‑5. It operates in temperatures from 5 °C to 40 °C and can be stored from –5 °C to 60 °C. This manual is written in Chinese.
| Printing method | Thermal transfer / direct thermal |
|---|---|
| Maximum print area | 48 mm × 96 mm |
| Print resolution | 203 dpi (8 pixels/mm) |
| Print speed | 60 mm/s (battery) / 80 mm/s (AC) |
| Physical dimensions | 132 mm × 230 mm × 151 mm |
| Weight | 2.4 kg (battery) / 2.5 kg (AC adapter) |
| Processor | 133 MHz 32‑bit RISC |
| Certifications | CE, CSA, CCC, TUV |
| Supported barcode symbologies | UPC‑A/E, EAN‑8/13, Code 39/128, NW‑7, Interleaved 2‑of‑5 |
| Power input | 230 V ±10%, Max 71 VA, 43 W |
| Communication interface | RS‑232C Serial, scanner (RS232C PS2) |
It supports both thermal transfer and direct thermal printing.
The printer provides a resolution of 203 dpi (8 pixels per millimeter).
It can print UPC‑A/E, EAN‑8/13, Code 39/128, NW‑7, and Interleaved 2‑of‑5 barcodes.
