SATO M84PRO barcode label printer supports thermal transfer/direct thermal mode, maximum printing range is 4.1 inches × 49.2 inches, print resolution is 203dpi (8 pixels/mm)/305dpi/609dpi, print speed is 2–10 inches/second (50–250 mm/second), and the product weighs 39.6 pounds (18 kilograms).
The SATO M84PRO is a high‑speed barcode label printer designed for heavy‑industry use. It supports both thermal transfer and direct‑thermal printing, offers up to 4.1 in × 49.2 in (104 mm × 1249 mm) printable area, and can print at speeds of 2–10 in/s (50–250 mm/s) with resolutions of 203, 305 or 609 dpi.

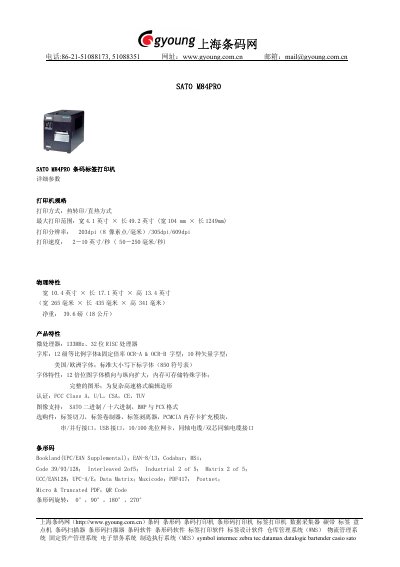

The manual details the printer’s physical dimensions, power requirements, environmental limits, supported barcode symbologies, and available interfaces such as parallel IEEE1284, RS‑232C/RS‑422/485 serial ports, 10/100 Mbps Ethernet and USB 1.1. It also lists optional accessories like label cutters, roll dispensers, and memory expansion modules. This manual is written in Chinese.
| Printing method | Thermal transfer / Direct thermal |
|---|---|
| Maximum print area | 4.1 in × 49.2 in (104 mm × 1249 mm) |
| Print resolution | 203 / 305 / 609 dpi |
| Print speed | 2–10 in/s (50–250 mm/s) |
| Physical dimensions | 10.4 in × 17.1 in × 13.4 in (265 mm × 435 mm × 341 mm) |
| Net weight | 39.6 lb (18 kg) |
| Processor | 133 MHz 32‑bit RISC |
| Power consumption | Standby 50 W, Working 130 W |
| Power supply | 110 V / 220 V (±10%), 50/60 Hz (±1%) |
| Relative humidity | 15 % – 85 % |
It supports both thermal transfer and direct‑thermal printing.
