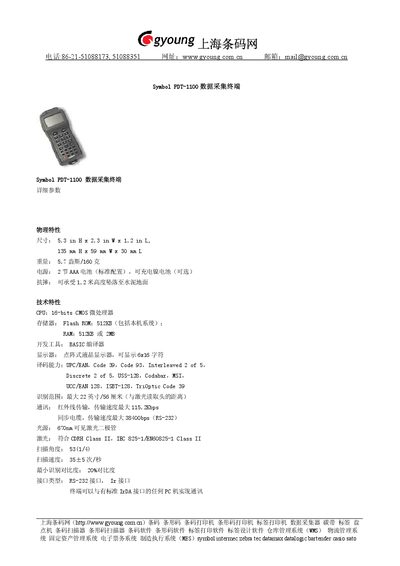

Symbol PDT-1100 data collection terminal is a small, lightweight, reliable and durable handheld data collection terminal. It is equipped with a 16-bit CMOS microprocessor and 512 KB flash ROM. It supports UPC/EAN, Code 39, Code 93, Interleaved 2 of 5, Discrete 2 of 5, USS-128, Codabar, MSI, UCC/EAN 128, ISBT-128, TriOptic Code 39 and other bar codes. It can be used in warehouses, retail, logistics and other fields.
The Symbol PDT-1100 is a handheld data‑collection terminal designed for barcode scanning in logistics and inventory applications. It measures 5.3 in H × 2.3 in W × 12 in L (135 mm × 59 mm × 30 mm) and weighs about 5.7 oz (160 g). Power is supplied by two AAA batteries (standard) with an optional rechargeable Ni‑MH pack.
Technical features include a 16‑bit CWOS microprocessor, 512 KB Flash ROM, 512 KB or 2 MB RAM, a 6 × 6 character dot‑matrix LCD, and support for multiple symbologies such as UPC/EAN, Code 39, Code 93, Interleaved 2‑of‑5, and others. Communication options are infrared (up to 115.2 kbps) and RS‑232 (up to 38.4 kbps). The device operates from 0 °C to 40 °C and meets UL, CSA, and EN certifications. This manual is written in Chinese.
| Size | 5.3 in H × 2.3 in W × 12 in L (135 mm × 59 mm × 30 mm) |
|---|---|
| Weight | 5.7 oz / 160 g |
| Power source | 2 AAA batteries (standard) or optional rechargeable Ni battery |
| CPU | 16‑bit CWOS microprocessor |
| Flash ROM | 512 KB (includes system) |
| RAM | 512 KB or 2 MB |
| Display | Dot‑matrix LCD, 6 × 6 characters |
| Recognition range | Maximum 22 in (56 cm) from laser head |
| Infrared communication speed | Up to 115.2 kbps |
| RS‑232 communication speed | Up to 38.4 kbps |
| Laser wavelength | 670 nm visible laser diode |
| Laser safety class | Class II (CDRH, IEC 825‑1/EN60825‑1) |
| Scan angle | 53 degrees (¼) |
| Minimum contrast | 20 % contrast |
| Interface types | RS‑232, IrDA |
| Operating temperature | 0 °C – 40 °C |
| Certifications | UL 1950, CSA C22.2 N0.950, EN60950V IEC 950 |
It runs on two AAA batteries as standard, with an optional rechargeable nickel‑metal‑hydride battery.
The terminal provides an infrared (IrDA) interface and an RS‑232 serial interface.
It can operate in temperatures from 0 °C up to 40 °C.
It supports UPC/EAN, Code 39, Code 93, Interleaved 2‑of‑5, Discrete 2‑of‑5, Code‑128, Codabar, ITF, UCC/EAN‑128, ISBT‑128, and Tri‑optic Code 39.
