IMC DLL8810-M laser bar code scanner is a stylish and stable bar code scanner with excellent performance. The scanner has a human-friendly design and symbol internal core, which can quickly and accurately read all one-dimensional bar codes. The super decoding system can effectively read incomplete and fuzzy codes. The IMC series bar code scanners are widely used in commercial POS systems, libraries, banks, insurance, inventory management and production process management.
The DLL8810-M is a compact, ergonomic laser barcode scanner that uses a Symbol core to read all 1‑D barcodes quickly and accurately. It supports a wide range of codes including UPC/EAN, CODE128, CODE39, and others, and meets Class 2 laser safety standards.

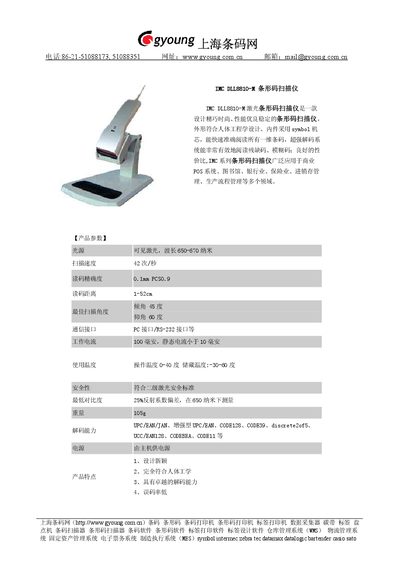

The device offers multiple interface options such as PC (USB) and RS‑232, operates from 0 °C to 40 °C (storage –30 °C to 60 °C), and draws a working current of 100 mA with a static current below 10 mA. Its lightweight design (105 g) and robust decoding capabilities make it suitable for POS, library, banking, and inventory management applications. This manual is written in Chinese.
| Light source | Visible laser, 650‑670 nm wavelength |
|---|---|
| Scan speed | 4 scans per second |
| Reading accuracy | 0.1 mm (≈0. lm PCS0.9) |
| Reading distance | 1‑52 cm |
| Communication interfaces | PC interface, RS‑232 interface |
| Operating temperature | 0 °C to 40 °C (storage –30 °C to 60 °C) |
| Laser safety class | Class 2 |
| Weight | 105 g |
It can scan at a rate of 4 scans per second.
The scanner provides a PC interface and an RS‑232 interface.
It operates from 0 °C to 40 °C, and can be stored between –30 °C and 60 °C.
