CASIO DT300 data collector is a product with excellent performance. It is light, portable, dustproof, waterproof and shockproof. Its scanning speed can reach 100 times per second, and it can read various bar codes. The input method is flexible, and data can be input through multiple ways, such as digital keys, scan start keys, etc.
The DT300 measures about 140 × 55 × 35 mm and weighs 170 g, featuring an ergonomic design and a 112 × 64‑dot LCD that supports 12, 16 and 20‑point fonts. It uses a semiconductor laser scanner capable of 100 scans per second and can read damaged codes.

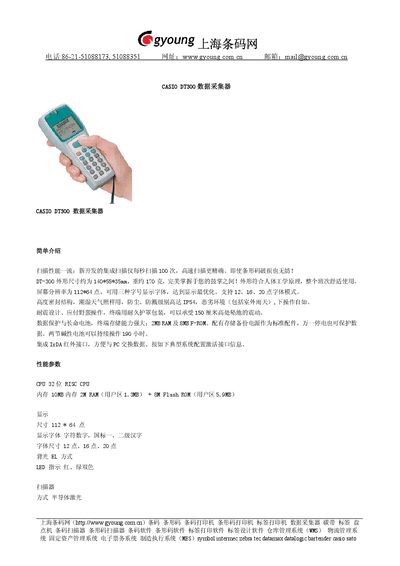

It is powered by two AA alkaline batteries providing up to 190 hours of operation, includes a backup lithium‑ion battery, and offers an IrDA infrared interface (up to 4 MB/s). The device meets IP54 dust‑and‑splash protection, operates from –5 °C to 50 °C, and stores data in 2 MB RAM plus 8 MB flash memory. This manual is written in Chinese.
| CPU | 32‑bit RISC |
|---|---|
| Memory | 10 MB total (2 MB RAM, 8 MB Flash) |
| Display size | 112 × 64 dots |
| Font sizes | 12, 16, 20 point |
| Sealing rating | IP54 (dust and splash resistant) |
| Scanning speed | 100 scans per second |
| Scanning distance | ≈4 mm – 300 mm (resolution 1 mm) |
| Supported barcodes | WPC, NW‑7, ITF, Code‑39, Code‑93, Code‑128, MSI, IATA, Industrial‑25 |
| Battery life | ≈190 hours (continuous use) |
| Operating temperature | -5 °C – 50 °C |
| Weight | 170 g |
| Dimensions | 140 × 55 × 35 mm (L × W × H) |
The DT300 can scan up to 100 barcodes per second.
With two AA alkaline batteries it can run for about 190 hours of operation.
The device is rated IP54, providing dust and splash protection.
It supports WPC, NW‑7, ITF, Code‑39, Code‑93, Code‑128, MSI, IATA and Industrial‑25 barcodes.
