tec b-852 label printer is an industrial use ultra-wide printer. with 300dpi resolution, it can meet most industrial user's printing quality requirements. with a maximum printing width of 213.2mm, it is especially designed for large label users. the floating point print head can effectively save ink ribbon and extend the life of the print head.
The TEC B-852 is an industrial ultra‑wide barcode printer offering 300 dpi resolution and a maximum print width of 213.2 mm, suitable for large‑format labels. It uses a floating‑point print head that saves ribbon and extends head life, and supports both thermal transfer and thermal‑sensitive printing.

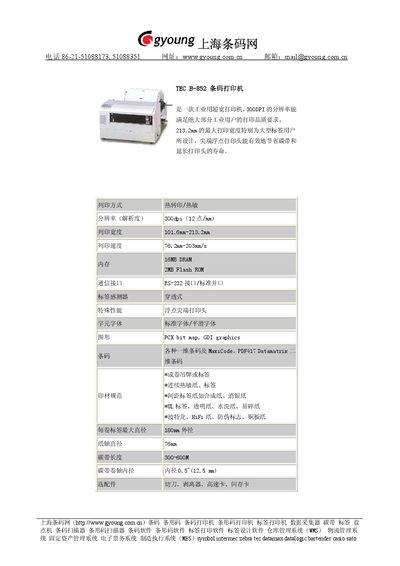

The printer includes 16 MB DRAM and 2 MB flash memory, RS‑232 and standard parallel interfaces, and can handle a variety of media such as continuous thermal paper, label rolls, and specialty substrates. Optional accessories include cutters, peelers, high‑speed cards, and flash cards, making it adaptable for logistics, transportation, and manufacturing environments. This manual is written in Chinese.
| Resolution | 300 dpi (12 dots/mm) |
|---|---|
| Print width | 101.6 mm – 213.2 mm |
| Print speed | 76.2 mm/s – 203 mm/s |
| Memory | 16 MB DRAM, 2 MB Flash |
| Communication interface | RS‑232 and standard parallel port |
| Maximum label roll diameter | 180 mm |
| Ribbon length | 300 – 600 m |
| Ribbon core inner diameter | 0.5 in (12.5 mm) |
The printer can print up to 213.2 mm wide labels.
It provides an RS‑232 interface and a standard parallel port.
The printer offers a resolution of 300 dpi (approximately 12 dots per mm).
