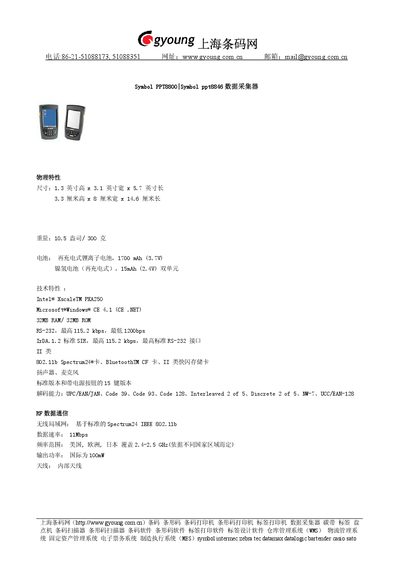

This document introduces the barcode-related products provided by Shanghai Barcode Network, including barcode printers, label printers, data collectors, etc. It describes the physical characteristics and technical features of the Symbol PPT8800|Symbol ppt8846 data collector, as well as the operating environment of the wireless LAN.
The Symbol PPT8800 and PPT8846 data collectors measure 1.3 in × 3.1 in × 5.7 in (size) and weigh about 300 g. They are powered by a rechargeable 1700 mAh Li‑ion battery (3.7 V) and a secondary 15 mAh backup cell. The devices run on an Intel XScale PXA250 processor with Windows CE 4.1, 32 MB RAM and 32 MB ROM. Communication options include RS‑232 (1200 bps–115.2 kbps), IrDA (SIR up to 115.2 kbps) and wireless (802.11b 2.4‑2.5 GHz, 11 Mbps, Bluetooth). Supported barcode symbologies include UPC/EAN/JAN, Code 39, Code 93, Code 128, Interleaved 2‑of‑5, Discrete 2‑of‑5, NW‑7, UCC/EAN‑128.
The devices operate in temperatures from –10 °C to +50 °C and humidity from 5 % to 90 % RH. They are certified to UL 1950, CSA C22.2 No. 950‑95, EN 60950‑1992, Low Voltage Directive 73/34/EEC, FCC Part 15, ICES‑003, EMC Directive 89/336/EEC, CISPR‑22 Class B, EN 55022, EN 55024. Contact information and website are listed as www.syoung.com.cn. This manual is written in Chinese.
| Dimensions | 1.3 in × 3.1 in × 5.7 in |
|---|---|
| Weight | 300 g |
| Battery capacity | 1700 mAh (3.7 V) rechargeable |
| Processor | Intel XScale PXA250 |
| Operating system | Microsoft Windows CE 4.1 |
| RAM / ROM | 32 MB RAM / 32 MB ROM |
| RS‑232 speed range | 1200 bps – 115.2 kbps |
| IrDA speed | up to 115.2 kbps (SIR) |
| Operating temperature | -10 °C to +50 °C |
| Relative humidity range | 5 % – 90 % RH |
It supports UPC/EAN/JAN, Code 39, Code 93, Code 128, Interleaved 2‑of‑5, Discrete 2‑of‑5, NW‑7 and UCC/EAN‑128.
The device can operate from –10 °C up to +50 °C.
