Shanghai bar code network provides zebra tlp 3742 bar code printer, the product adopts heat transfer/thermal sensitive printing mode, the maximum printing width is 104mm, the printing length is 254mm, the fastest printing speed is 51mm/s, the memory is SRAM 512KB Flash 1MB, the communication interface is serial port and parallel port, the programming language is ELP2, the volume is 200*247*171mm, the weight is 1.81kg, the character font supports Asian languages, the paper shaft diameter is 25mm, the carbon tape length is 100M, the carbon tape width is 33mm-110mm, the carbon tape reel inner diameter is 12.5mm, and it is suitable for clothing tags, clothing washing labels/commercial product labels/postal drop tickets, annual inspection signs/production automation management labels/transportation, distribution logistics labels/retail inventory management labels/shipping, medical, retail, shelf labels and sample labels.
The TLP 3742 is a commercial‑type printer from Shanghai Barcode Network, designed for high‑volume label printing in retail, logistics, and other business applications. It offers a compact design, reliable print quality, and support for Asian languages.

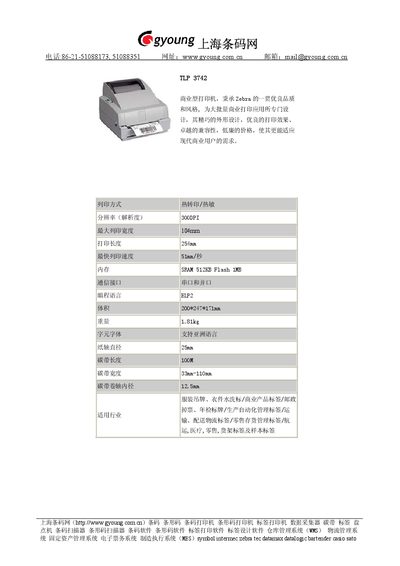

Key specifications include a 300 DPI resolution, 104 mm maximum print width, 254 mm print length, and a print speed of 5 mm/s. The unit is equipped with 512 KB SRAM, 1 MB flash memory, serial and parallel interfaces, and weighs 1.81 kg. This manual is written in Chinese.
| Resolution | 300 DPI |
|---|---|
| Memory | 512 KB SRAM, 1 MB Flash |
| Dimensions (L×W×H) | 200 × 247 × 171 mm |
| Ribbon Width | 33–110 mm |
The printer provides a resolution of 300 DPI.
