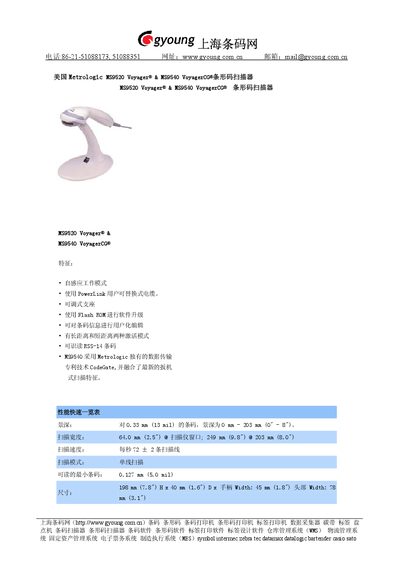

The Metrologic MS9520 Voyager® & MS9540 VoyagerCG® bar code scanner is a self-sensing working mode bar code scanner that uses the PowerLink user replaceable cable, adjustable bracket, uses Flash ROM for software upgrades, can customize the bar code information, has long and short distance activation modes, and can read RSS-14 bar codes.
The Metrologic MS9520 Voyager and MS9540 VoyagerCG are barcode scanners featuring self‑learning work modes, interchangeable PowerLink modules, flash‑based firmware, and RSS‑14 barcode support. They include high‑speed scanning, multiple interface options, and robust shock resistance.
Technical details include depth of field from 0.33 mm up to 203 mm, a minimum readable barcode width of 0.127 mm, scan speeds of up to 72 scans per second, and a visible laser light source at 650 nm ± 10 nm. Physical dimensions and weight differ between models, and both support PC, RS232, USB, IBM 468X/469X, and independent interfaces. This manual is written in Chinese.
| Depth of field | 0.33 mm to 203 mm |
|---|---|
| Resolution | 64.0 mm (2.5 mil) |
| Scan speed | 72 scans per second |
| Minimum barcode width | 0.127 mm (5.0 mil) |
| Weight (MS9520) | 149 g |
| Weight (MS9540) | 199 g |
| Dimensions | Height 40 mm, Handle width 45 mm, Overall width 78 mm |
| Interface options | PC, RS232, USB (low‑speed & high‑speed), IBM 468X/469X, independent interface |
| Light source | Visible laser, wavelength 650 nm ± 10 nm |
| Shock resistance | Drop from 1.5 m |
It supports PC, RS232, USB (both low‑speed and high‑speed), IBM 468X/469X, and an independent interface.
The scanner can read barcodes as narrow as 0.127 mm (5.0 mil).
It can scan up to 72 times per second.
