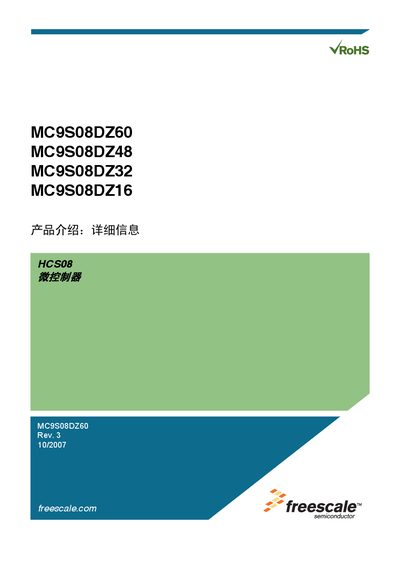

This manual provides comprehensive information for the MC9S08DZ series of HCS08 microcontrollers, covering the MC9S08DZ60, MC9S08DZ48, MC9S08DZ32, and MC9S08DZ16 devices. It includes an overview of features, memory resources, peripheral modules, and package options.
The document contains tables of electrical characteristics, pin‑count and package dimensions, clock system details, and revision history. Appendices give packaging information and mechanical data to aid system designers and software developers.
| CPU frequency | 40 MHz |
|---|---|
| Flash memory size (MC9S08DZ60) | 60 KB |
| Flash memory size (MC9S08DZ48) | 48 KB |
| EEPROM size (MC9S08DZ60) | 2 KB |
| Pin count (MC9S08DZ60) | 64 pins |
| ADC channels | 24 channels |
| Maximum interrupt sources | 32 sources |
The MC9S08DZ series uses a 40‑MHz HCS08 CPU.
The MC9S08DZ60 provides 60 KB of flash memory.
The MC9S08DZ60 is offered in a 64‑pin LQFP package.
The device supports up to 24 ADC channels.
