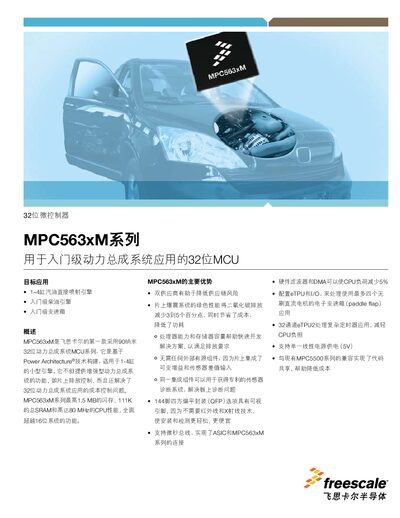

The Freescale MPC563xM 32-bit microcontroller overview details its 80 MHz e200z3 core, up to 1.5 MB flash, 111 KB SRAM, and automotive‑grade features.
The MPC563xM series is Freescale's first 90 nm 32‑bit Power Architecture MCU aimed at 1‑4 cylinder gasoline direct‑injection, entry‑level diesel and transmission applications. It offers enhanced power‑train functions such as on‑chip emission control while addressing cost and power consumption. Key features include an e200z3 core running up to 80 MHz, up to 1.5 MB of flash, 111 KB of SRAM, 32‑channel eTPU2, dual ADC modules with up to 34 channels, dual FlexCAN, and support for a single 5 V supply. Various package options (100‑208 LQFP, MAPBGA, etc.) and memory configurations are provided to suit different designs. This manual is written in Chinese.
| CPU core | e200z3 |
|---|---|
| Maximum CPU frequency | 80 MHz |
| Flash memory options | 768 KB, 1 MB, 1.5 MB |
| Static RAM | 111 KB |
| eTPU2 channels | 32 |
| ADC modules | Dual, up to 34 channels with differential input and variable gain |
| Supply voltage | 5 V single supply |
The MPC563xM can run up to 80 MHz.
It offers flash memory options of 768 KB, 1 MB, or 1.5 MB.
The device includes 32 eTPU2 channels.
It supports a single 5 V supply.
