The MMG3003NT1 is a high linearity amplifier from Freescale Semiconductor. It is suitable for applications in the 40-3600MHz range, such as cellular networks, PCS, BWA, WLL, PHS, CATV, VHF, UHF, UMTS, etc. The product features a single voltage supply, internal matching to 50 ohms, and a low-cost SOT-89 surface mount package.
The MMG3003NT1 is a broadband high‑linearity heterojunction bipolar transistor (HBT) amplifier covering 40 MHz to 3.6 GHz. It offers 20 dB small‑signal gain, 24 dBm P1dB, and a 40.5 dBm third‑order output intercept point, all in a low‑cost SOT‑89 package with RoHS compliance.

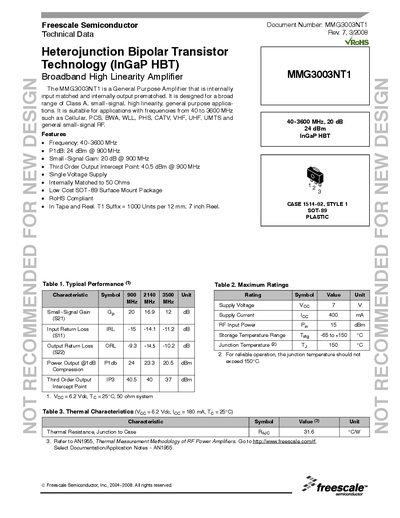

The document includes typical performance tables, maximum ratings, thermal characteristics, pin descriptions, ESD and moisture‑sensitivity data, as well as 50 Ω application circuit schematics for various frequency bands. Revision history and contact information are provided at the end.
| Frequency range | 40 MHz – 3600 MHz |
|---|---|
| Small‑Signal Gain (900 MHz) | 20 dB |
| P1dB (900 MHz) | 24 dBm |
| Third‑Order Output Intercept Point (IP3) (900 MHz) | 40.5 dBm |
| Supply Voltage | 6.2 V |
| Supply Current (typical) | 180 mA |
| Noise Figure | 4 dB |
It operates from 40 MHz up to 3600 MHz.
The device provides a small‑signal gain of 20 dB at 900 MHz.
P1dB is 24 dBm when measured at 900 MHz.
The recommended supply voltage is 6.2 V.
