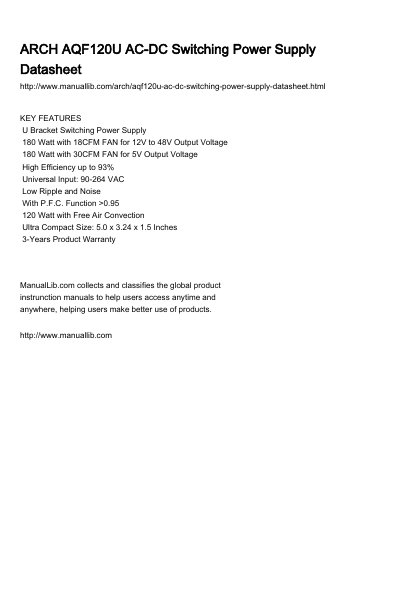

KEY FEATURES U Bracket Switching Power Supply 180 Watt with 18CFM FAN for 12V to 48V Output Voltage 180 Watt with 30CFM FAN for 5V Output Voltage High Efficiency up to 93% Universal Input: 90-264 VAC Low Ripple and Noise With P.F.C. Function >0.95 120 Watt with Free Air Convection Ultra Compact Size: 5.0 x 3.24 x 1.5 Inches 3-Years Product Warranty
The ARCH AQF120U series is a U-bracket switching power supply designed for 12V to 48V output voltages. It offers high efficiency up to 93% and includes a Power Factor Correction (P.F.C.) function with a rating greater than 0.95. The unit supports universal input ranging from 90-264 VAC and utilizes free air convection for cooling.
| Max Output Wattage | 120W |
|---|---|
| Input Voltage | 90-264 VAC |
| Output Voltage | 12V to 48V |
| Efficiency | up to 93% |
| Dimensions | 5.0 x 3.24 x 1.5 Inches |
| Operating Temperature | -10°C…+70°C |
| Weight | 382 g |
The maximum output wattage is 120W.
Yes, it includes a P.F.C. Function with a rating greater than 0.95.
The unit uses free air convection for cooling.
