KEY FEATURES Switching Power Module for PCB Mountable Fully Encapsulated Plastic Case Universal Input Range 90-264VAC, 47-440 Hz Single and Dual Output Low Ripple and Noise Isolation Class II Maximum No-Load Watts < 0.3W CE, CB and UL Approval 3-Years Product Warranty

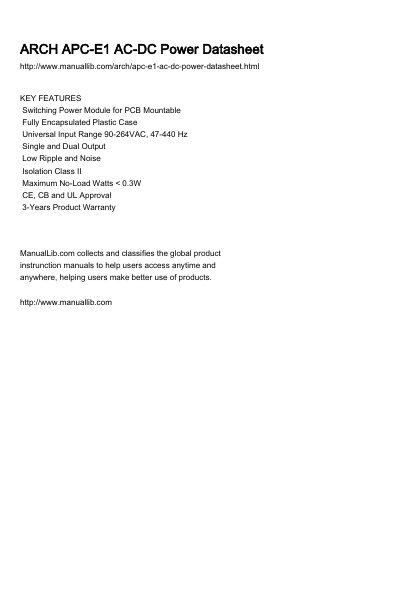

This document is a datasheet for the SIARCH APC-E1 Series AC-DC Power Modules. It details key features such as universal input range (90-264VAC), low ripple and noise, and isolation class II compliance. The module is designed for PCB mounting with a fully encapsulated plastic case.
| Max Output Wattage | 5W |
|---|---|
| Input Voltage Range | 90-264VAC or 120-370 VDC |
| Operating Temperature | -40°C...+70°C |
| Weight | 80g |
The maximum input current is 120 mA at 115 VAC and 70 mA at 230 VAC.
The datasheet recommends using a 1.5 A slow blow type external fuse.
The maximum no-load power consumption is less than 0.3W.
