This datasheet introduces the key features of the Arch AQF100C AC-DC switching power supply, including the high efficiency, input voltage range, output voltage range, output current range, output power, and leakage current.

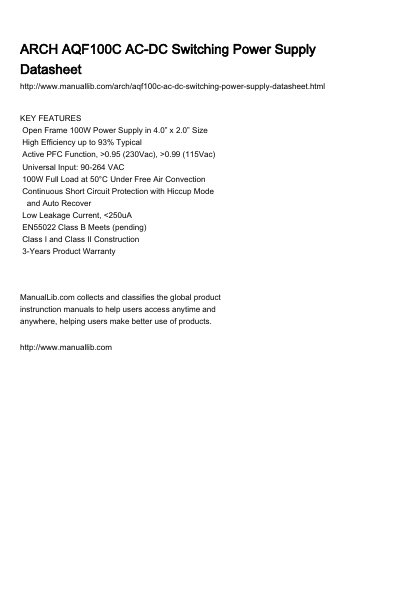

This document is a datasheet for the ARCH AQF100C Series, a 100W Open Frame AC-DC Switching Power Supply. The unit features a compact 4.0" x 2.0" size and offers high efficiency up to 93% typical. It includes an active PFC function with a power factor greater than 0.95 at 230Vac and greater than 0.99 at 115Vac.
| Input Voltage | 90-264 VAC or 120-370 VDC |
|---|---|
| Input Frequency | 47-63 Hz |
| Typical Efficiency | up to 93% |
| Power Factor (230Vac) | >0.95 |
| Dimensions (LxWxH) | 4.1x2.05x 0.98 Inches |
| Operating Temperature | -25°C...+70°C |
The unit provides a maximum output wattage of 100 W.
It accepts an input voltage of 90-264 VAC or 120-370 VDC at a frequency of 47-63 Hz.
The unit operates between -25°C and +70°C, though derating applies at higher temperatures.
