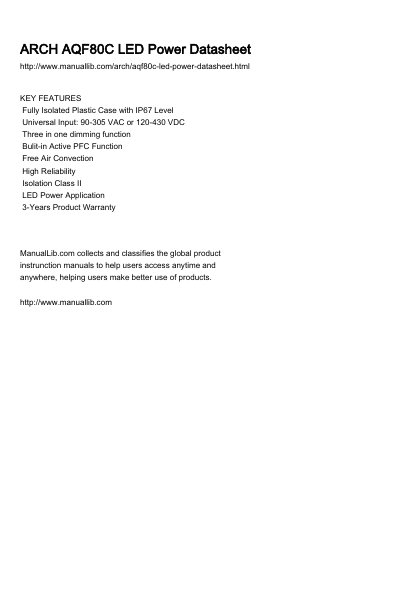

ARCH AQF80C LED Power Datasheet

KEY FEATURES Fully Isolated Plastic Case with IP67 Level Universal Input: 90-305 VAC or 120-430 VDC Three in one dimming function Bulit-in Active PFC Function Free Air Convection High Reliability Isolation Class II LED Power Application 3-Years Product Warranty

Brand: ARCH
Category: LED Power
Document type: Datasheet
Language: English
Pages: 5
File format: PDF
File size: 316 KB
Published: 28 February, 2014
Updated: 25 September, 2023
MD5 checksum: 201D7930C7E3EBB7051B034506F5B503
PDF: ARCH AQF80C LED Power Datasheet PDF

About this manual

This document is a technical datasheet for the ARCH AQF80C Series, an 80-watt open-frame LED power supply. The device features a fully isolated plastic case with IP67 rating, built-in Active Power Factor Correction (PFC), and supports universal input voltages ranging from 90-305 VAC or 120-430 VDC.

What's inside

Key Features
Electrical Specifications
Mechanical Dimension
Derating Block Diagram
Efficiency Versus Load

Specifications

Max Output Wattage	80W
Input Voltage Range	90-305 VAC or 120-430 VDC
Cooling Method	Free air convection
Product Warranty	3 Years
Operating Temperature	-40°C…+70°C

Frequently asked questions

What is the input voltage range?

The unit supports a universal input of 90-305 VAC or 120-430 VDC.

Does this power supply have Active PFC?

Yes, the AQF80C series includes a built-in Active PFC function.
