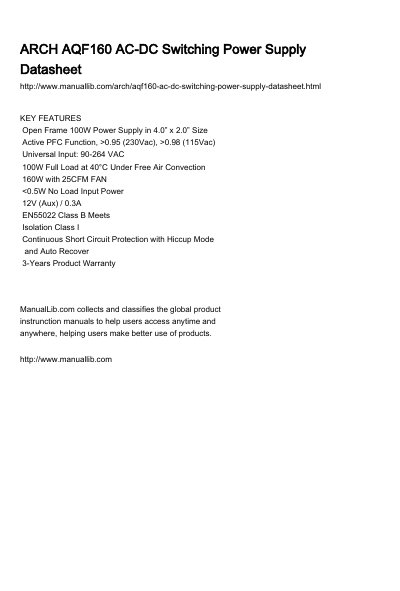

The ARCH AQF160 AC-DC Switching Power Supply is a 100W open frame power supply in a 4.0” x 2.0” size with Active PFC function, input range of 90-264 VAC, full load power of 100W, no load input power less than 0.5W, meets EN55022 Class B and Isolation Class I standards, and provides 3 years warranty.
The ARCH AQF160 Series is an open frame AC-DC switching power supply available in 100W and 160W configurations. It features an active PFC function with a power factor greater than 0.95 at 230Vac and greater than 0.98 at 115Vac. The unit supports a universal input voltage range of 90-264 VAC.
| Max Output Wattage (Free air Convection) | 100 W |
|---|---|
| Max Output Wattage (with 25CFM FAN) | 160 W |
| Universal Input Voltage | 90-264 VAC |
| Power Factor (115 VAC) | >0.98 |
| Power Factor (230 VAC) | >0.95 |
| Operating Temperature | -25°C...+70°C |
| Product Warranty | 3-Years |
The unit delivers 100W under free air convection and up to 160W when used with a 25CFM fan.
The device accepts an AC input ranging from 90 to 264 VAC or a DC input of 120 to 370 VDC.
The unit measures 4.1 x 2.05 x 1.42 inches and weighs 220g.
