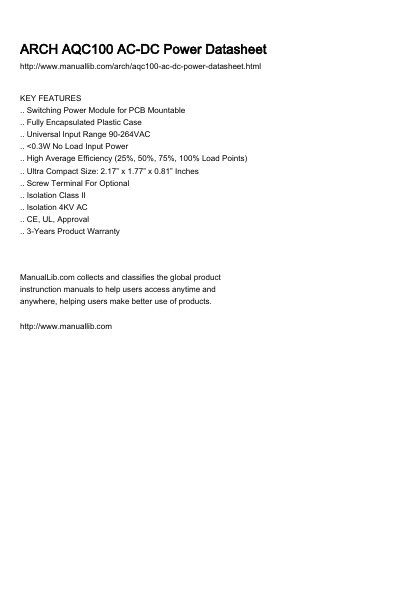

KEY FEATURES .. Switching Power Module for PCB Mountable .. Fully Encapsulated Plastic Case .. Universal Input Range 90-264VAC .. <0.3W No Load Input Power .. High Average Efficiency (25%, 50%, 75%, 100% Load Points) .. Ultra Compact Size: 2.17
This document is a datasheet for the SIARCH AQC100 series of AC-DC power modules. The series includes models with output wattages of 85W and 100W, designed for PCB mounting with a fully encapsulated plastic case. Key features include a universal input range of 90-264VAC, high efficiency up to 93% typical, and active PFC function.
| Max Output Wattage | 85W or 100W |
|---|---|
| Input Voltage | 90-264 VAC or 120-370 VDC |
| Efficiency | up to 93% Typical |
| Operating Temperature | -25°C...+70°C |
| Dimensions | 109.0 x 58.5 x 30.0 mm |
| Warranty | 3 Years |
The module supports a universal input range of 90-264 VAC or 120-370 VDC.
Yes, it features continuous short circuit protection with hiccup mode and auto recover.
The product has CE, UL60950-1, and CB safety agency approvals.
