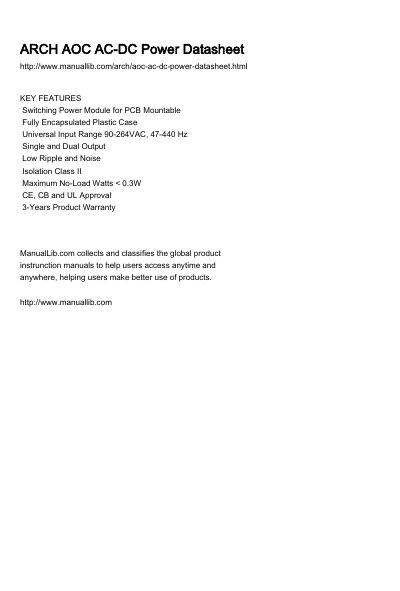

KEY FEATURES Switching Power Module for PCB Mountable Fully Encapsulated Plastic Case Universal Input Range 90-264VAC, 47-440 Hz Single and Dual Output Low Ripple and Noise Isolation Class II Maximum No-Load Watts < 0.3W CE, CB and UL Approval 3-Years Product Warranty
This document is a datasheet for the ARCH AOC series of AC-DC power modules, available in single and dual output configurations. The modules are designed for PCB mounting with a fully encapsulated plastic case and feature a universal input range of 90-264VAC.
| Max Output Wattage | 4 Watts |
|---|---|
| Input Voltage Range | 90-264 VAC or 120-370 VDC |
| Operating Temperature | -40°C…+70°C |
| Isolation Input-Output | 3000V |
| Dimensions | 36.66 x 27.16 x 17.1 mm |
| Case Material | Plastic resin with Fiberglass |
The maximum no-load power consumption is less than 0.3W.
The module has CE, CB, and UL approvals.
A 3.15 A slow blow type fuse is recommended.
