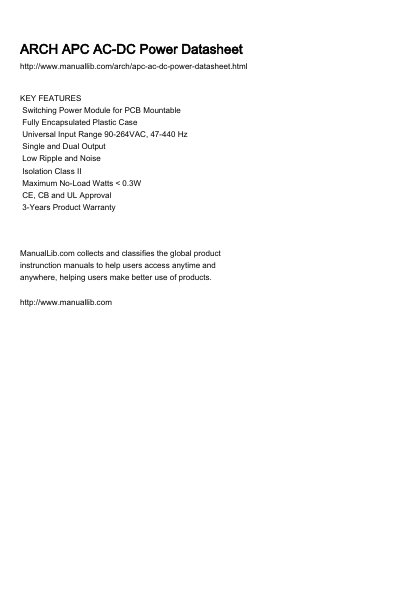

KEY FEATURES Switching Power Module for PCB Mountable Fully Encapsulated Plastic Case Universal Input Range 90-264VAC, 47-440 Hz Single and Dual Output Low Ripple and Noise Isolation Class II Maximum No-Load Watts < 0.3W CE, CB and UL Approval 3-Years Product Warranty
This document is a technical datasheet for the ARCH Electronics Corp. APC Series AC-DC Power Modules, specifically the 5 Watt variant. The product is designed as a PCB mountable switching power module with a fully encapsulated plastic case suitable for various applications requiring regulated DC output from universal AC or DC input.
| Max Output Wattage | 5W |
|---|---|
| Input Voltage Range | 90-264 VAC or 120-370 VDC |
| Input Frequency | 47-440 Hz |
| Isolation Class | Class II |
| Operating Temperature | -25°C...+70°C (with derating) |
| Dimensions | 55.0 x 45.0 x 20.5 mm |
| Safety Approvals | UL/cUL, CE |
The maximum no-load power consumption is less than 0.3W.
An external 1.5 A slow blow type fuse is recommended.
The minimum load requirement is 4% for the 3.3V output model.
