This product is a 100W open frame switching power supply with high efficiency, high power factor and low leakage current.

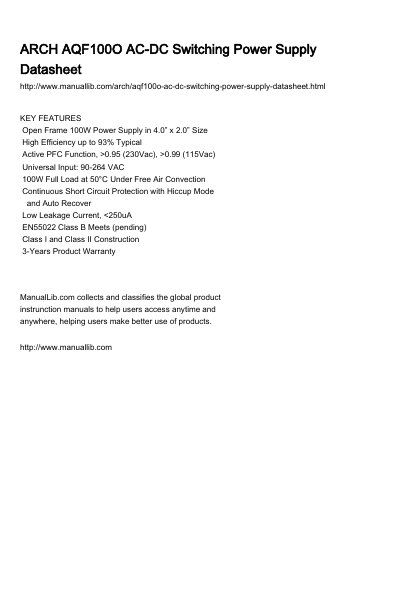

The document provides a comprehensive overview of the ARCH AQF100O Series, an open-frame AC-DC switching power supply delivering up to 100W in free air convection. Key features include high efficiency reaching up to 93% typical, active PFC function with input power factors greater than 0.95 at 230Vac and 0.99 at 115Vac, and universal input voltage ranging from 90-264 VAC.
| Input Voltage Range | 90-264 VAC or 120-370 VDC |
|---|---|
| Operating Temperature | -25°C…+70°C (with derating) |
| Dimensions (L x W x H) | 4.1 x 2.05 x 0.98 Inches |
| Weight | 200 g |
Yes, it features an active PFC function with >0.95 PF at 230Vac and >0.99 PF at 115Vac.
The unit has CE, UL60950-1, and CB approvals.
