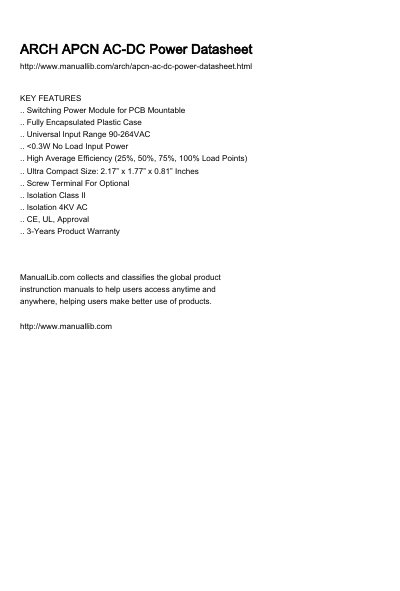

KEY FEATURES .. Switching Power Module for PCB Mountable .. Fully Encapsulated Plastic Case .. Universal Input Range 90-264VAC .. <0.3W No Load Input Power .. High Average Efficiency (25%, 50%, 75%, 100% Load Points) .. Ultra Compact Size: 2.17
This document is a datasheet for the ARCH APCN Series, a family of 15-watt AC-DC power modules designed for PCB mounting. The series includes single-output models with output voltages of 5V, 12V, 15V, and 24V. Key features include a universal input range of 90-264VAC, a compact fully encapsulated plastic case, and Class II isolation.
| Max Output Wattage | 15W |
|---|---|
| Input Voltage Range | 90-264 VAC or 120-370 VDC |
| Operating Temperature | -40°C…+70°C |
| Dimensions (L x W x H) | 2.17 x 1.77 x 0.81 Inches |
| Isolation | 4KV AC |
| Warranty | 3 Years |
The maximum output wattage is 15W.
The input voltage range is 90-264VAC or 120-370VDC.
The isolation rating is 4KV AC.
