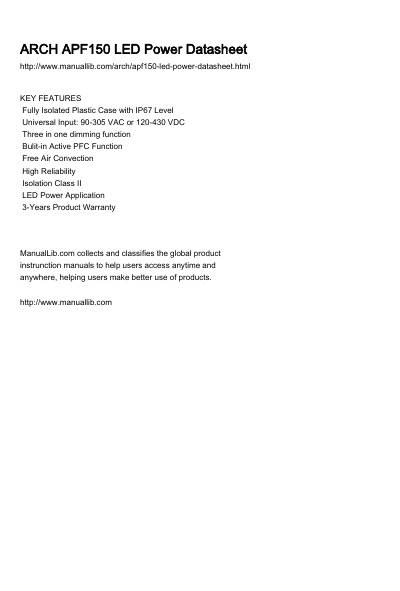

KEY FEATURES Fully Isolated Plastic Case with IP67 Level Universal Input: 90-305 VAC or 120-430 VDC Three in one dimming function Bulit-in Active PFC Function Free Air Convection High Reliability Isolation Class II LED Power Application 3-Years Product Warranty
This document is a datasheet for the ARCH APF150 Series, a 150-watt LED power supply. It features a fully isolated plastic case with an IP67 rating and includes built-in active PFC and three-in-one dimming functions. The unit supports universal input voltages ranging from 90-305 VAC or 120-430 VDC.
| Max Output Wattage | 150W |
|---|---|
| Input Voltage | 90-305 VAC or 120-430 VDC |
| Operating Temperature | -30°C…+60°C |
| Dimensions | 144.0 x 70.0 x 37.5 mm |
| Weight | 660 g |
| Efficiency (typ.) | 90.5% to 93.5% |
The product comes with a 3-year warranty.
The unit uses free air convection for cooling.
It supports 90-305 VAC or 120-430 VDC.
