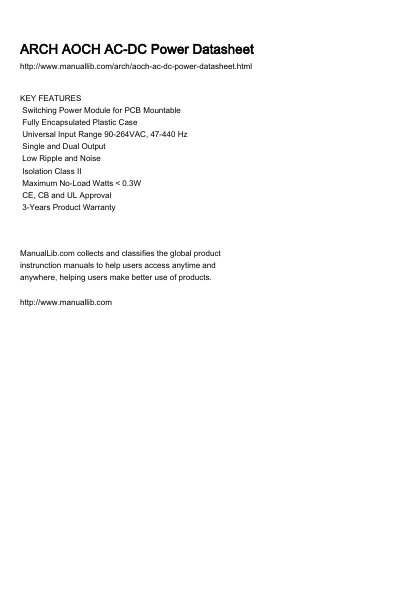

KEY FEATURES Switching Power Module for PCB Mountable Fully Encapsulated Plastic Case Universal Input Range 90-264VAC, 47-440 Hz Single and Dual Output Low Ripple and Noise Isolation Class II Maximum No-Load Watts < 0.3W CE, CB and UL Approval 3-Years Product Warranty
This document is a technical datasheet for the ARCH Electronics Corp. AOCH series of switching power modules designed for PCB mounting. The product features a fully encapsulated plastic case with Class II isolation and operates on a universal input range of 90-305VAC or 120-430VDC.
| Max Output Wattage | 4 Watts (Single), 3.5W-3.6W (Dual) |
|---|---|
| Input Voltage Range | 90-305 VAC or 120-430 VDC |
| Operating Temperature | -40°C...+70°C (with derating) |
| Isolation Input-Output | 3000V AC |
| Dimensions | 1.44 x 1.07 x 0.67 Inches |
| Safety Approvals | UL, cUL, CE |
The module operates from -40°C to +70°C, provided derating is applied.
The datasheet recommends a 3.15 A slow blow type external fuse.
The maximum no-load watts is less than 0.3W.
