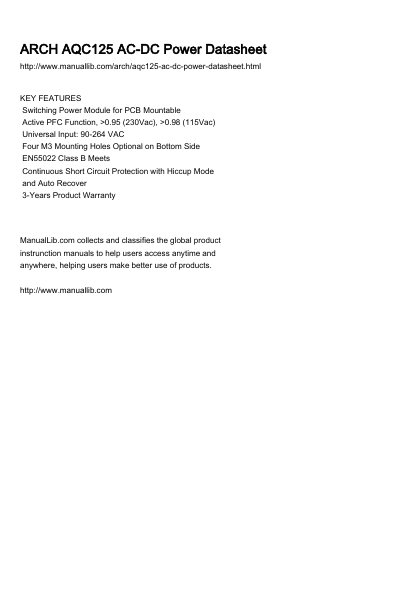

SIARCH AQC125 Series AC-DC Power Module Datasheet

KEY FEATURES Switching Power Module for PCB Mountable Active PFC Function, >0.95 (230Vac), >0.98 (115Vac) Universal Input: 90-264 VAC Four M3 Mounting Holes Optional on Bottom Side EN55022 Class B Meets Continuous Short Circuit Protection with Hiccup Mode and Auto Recover 3-Years Product Warranty

Brand: ARCH
Category: AC-DC Power
Document type: Datasheet
Language: English
Pages: 5
File format: PDF
File size: 238 KB
Published: 28 February, 2014
Updated: 25 September, 2023
MD5 checksum: 8CEA47136EDD74352C798EDC95C26D84
PDF: SIARCH AQC125 Series AC-DC Power Module Datasheet PDF

About this manual

This document is a technical datasheet for the SIARCH Electronics Corp. AQC125 Series, which are 125-watt AC-DC power modules designed for PCB mounting. The modules feature an active Power Factor Correction (PFC) function with efficiency greater than 0.98 at 115VAC and greater than 0.95 at 230VAC.

What's inside

Key Features
Electrical Specifications
Mechanical Dimension
Power Derating Curve
Block Diagram
Efficiency Versus Load

Specifications

Max Output Wattage	125 W
Input Voltage Range	90-264 VAC or 120-370 VDC
Operating Temperature	-25°C to +70°C
Dimensions	146.0 x 71.0 x 38.0 mm
Mounting	Four M3 Mounting Holes Optional

Frequently asked questions

What is the power factor at full load?

The power factor is greater than 0.98 at 115VAC and greater than 0.95 at 230VAC.

What is the product warranty period?

The product comes with a 3-year warranty.
