KEY FEATURES .. U Bracket Switching Power Supply .. Universal Input: 90-264 VAC .. With P.F.C. Function, PF>0.95 .. Free Air Convection .. High Efficiency up to 93% .. RoHS Compliant Design .. Ultra Compact Size: 6.0 x 4.18 x 1.38 Inches .. 3-Years Product Warranty

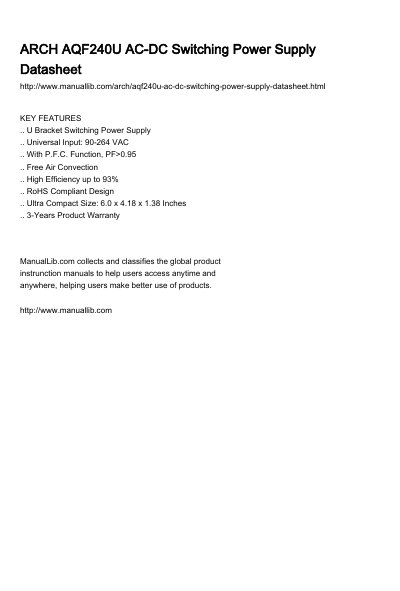

This document is a datasheet for the ARCH AQF240U series of AC-DC switching power supplies. The series offers a maximum output wattage of 240W with a universal input voltage range of 90-264 VAC or 120-370 VDC. Key features include a Power Factor Correction (PFC) function with a power factor greater than 0.95, high efficiency up to 93%, and a compact U-bracket design suitable for free air convection cooling.
| Max Output Wattage | 240W |
|---|---|
| Input Voltage | 90-264 VAC or 120-370 VDC |
| Power Factor | >0.95 |
| Efficiency | up to 93% |
| Operating Temperature | -10°C...+70°C |
| Dimensions | 6.0 x 4.18 x 1.38 Inches |
| Cooling Method | Free convection |
The product comes with a 3-year warranty.
Yes, the design is RoHS compliant.
The unit has CE, UL60950 (except 5S), and CB (except 5S) approvals.
