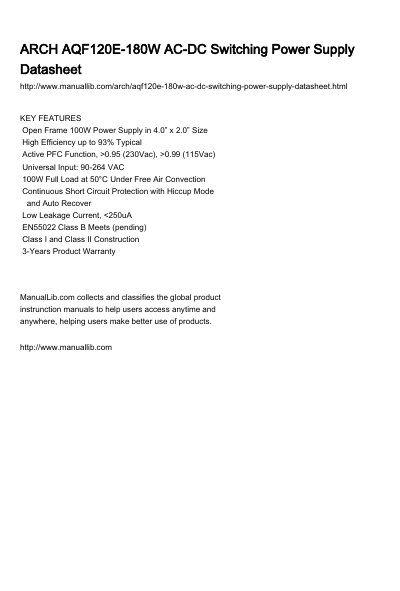

This product is an ARCH brand AQF120E-180W AC-DC Switching Power Supply, which is a 180W open frame switching power supply with high efficiency, high reliability and low leakage current.
This document provides technical data for the ARCH AQF120E Series AC-DC Switching Power Supply. It details various models within the series (5S, 12S, 15S, 24S, 48S) with output wattages ranging from 120W to 180W. Key features include universal input voltage support (90-264 VAC), high efficiency up to 93%, and active PFC function.
| Max Output Wattage (12V-48V) | 180 W |
|---|---|
| Max Output Wattage (5V) | 150 W |
| Input Voltage Range | 90-264 VAC or 120-370 VDC |
| Efficiency (Typical) | Up to 93% |
| Dimensions | 5.0 x 3.24 x 1.5 Inches |
| Weight | 400 g |
The maximum output wattage is 150 W when using a 30CFM fan.
The unit measures 5.0 x 3.24 x 1.5 Inches.
The unit operates between -25°C and +70°C, though derating applies.
