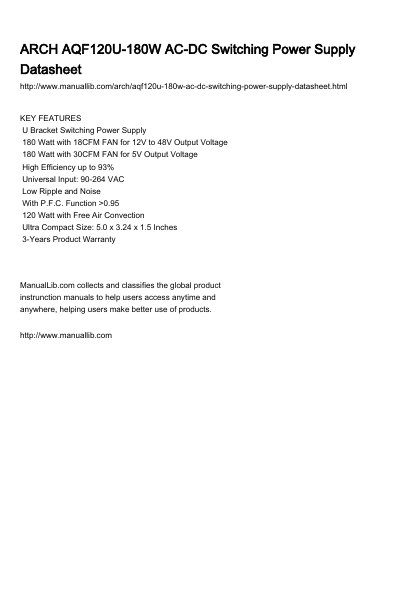

KEY FEATURES U Bracket Switching Power Supply 180 Watt with 18CFM FAN for 12V to 48V Output Voltage 180 Watt with 30CFM FAN for 5V Output Voltage High Efficiency up to 93% Universal Input: 90-264 VAC Low Ripple and Noise With P.F.C. Function >0.95 120 Watt with Free Air Convection Ultra Compact Size: 5.0 x 3.24 x 1.5 Inches 3-Years Product Warranty
This document provides technical specifications and performance data for the ARCH Electronics Corp. AQF120U Series, a line of U Bracket Switching Power Supplies. The series offers output voltages ranging from 5V to 48V with maximum wattage up to 180W.
| Max Output Wattage (12V-48V) | 180 W with 18CFM FAN |
|---|---|
| Max Output Wattage (5V) | 180 W with 30CFM FAN |
| Input Voltage Range | 90-264 VAC or 120-370 VDC |
| Efficiency (Typical) | Up to 93% |
| Power Factor | >0.95 |
| Operating Temperature | -25°C...+70°C (with derating) |
| Dimensions (LxWxH) | 5.0 x 3.24 x 1.5 Inches |
| Product Warranty | 3 Years |
The typical efficiency can reach up to 93% depending on the specific model and load.
Yes, it includes a Power Factor Correction function with a value greater than 0.95.
The universal input range covers 90-264 VAC or 120-370 VDC.
