This document is about CL-2025 packaging information, including reference pattern layout dimensions and reference metal mask design.

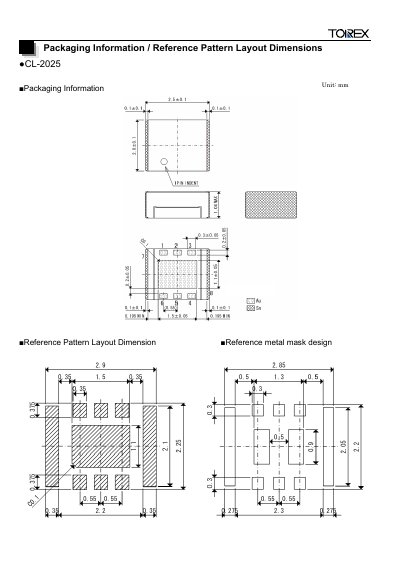

This document presents the packaging information for the Torex CL-2025, including all relevant dimensions expressed in millimetres. It lists the overall package size, thickness, and other key measurements needed for handling and integration.
The reference pattern layout dimensions and metal mask design specifications are also included, giving precise values for pattern spacing and mask features required during manufacturing and quality control. This manual is written in Chinese.
All dimensions are expressed in millimetres.
The document provides data for the CL-2025 model.
