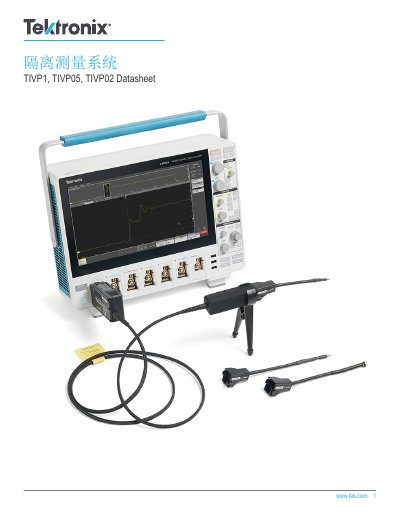

Tektronix IsoVu TIVP1, TIVP05, TIVP02 Isolated Measurement System Datasheet

About this manual

This datasheet details the Tektronix IsoVu TIVP1, TIVP05, and TIVP02 isolated measurement systems, which utilize fiber-optic power and analog signal paths to achieve complete electro-optical isolation. The systems are designed for high-bandwidth and high-voltage differential measurements in power converter and motor drive designs, offering common-mode rejection ratios up to 160 dB and a common-mode voltage range of ±60 kV.

What's inside

• IsoVu Probe Technology
• High Performance and Convenient Connection
• Floating Measurements
• Applications
• Technical Data
• Ordering Information
• Service Options
• Supported Oscilloscopes

Frequently asked questions

What is the maximum common-mode voltage range for the IsoVu measurement system?

The system supports a common-mode voltage range of ±60 kV.

What is the maximum differential input voltage range for the IsoVu probes?

The probes provide a differential input voltage range of ±2500 V.

What is the bandwidth of the TIVP1 model?

The TIVP1 model has a bandwidth of 1 GHz.
