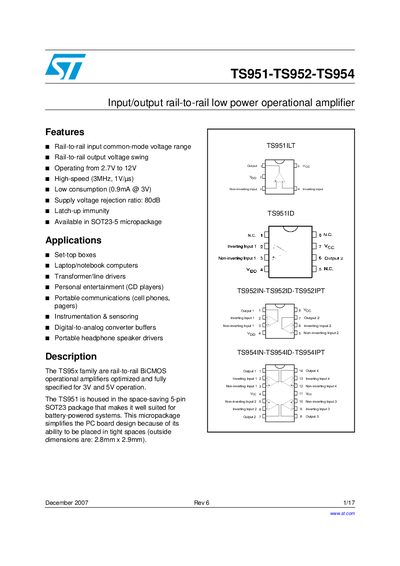

STMicroelectronics TS951/TS952/TS954 Operational Amplifier Datasheet
The TS951, TS952 and TS954 are rail‑to‑rail BiCMOS operational amplifiers optimized for 3 V and 5 V operation. They are offered in a compact 5‑pin SOT23‑5 micropackage, making them suitable for battery‑powered and space‑constrained designs.
The document provides absolute maximum ratings, operating conditions, electrical characteristics, package dimensions and revision history. It also includes typical performance graphs such as supply current versus voltage and gain‑bandwidth versus frequency.
STMicroelectronics TS951-TS952-TS954 specifications
| Supply voltage range | 2.7 V to 12 V |
|---|---|
| Common‑mode input voltage range | Vpp − 0.2 V to Vee + 0.2 V |
| Operating temperature range | -40 °C to +125 °C |
| Gain‑bandwidth product | 3 MHz |
| Slew rate | 1 V/µs |
| Output short‑circuit current | 10 mA |
| Supply voltage rejection ratio | 80 dB |
| Latch‑up immunity | 200 mA |
Source: STMicroelectronics TS951/TS952/TS954 Operational Amplifier Datasheet
All STMicroelectronics TS951-TS952-TS954 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage range do the TS951, TS952 and TS954 support?
They operate from 2.7 V up to 12 V.
From: STMicroelectronics TS951/TS952/TS954 Operational Amplifier Datasheet
In which package are the TS951/TS952/TS954 offered?
They are available in a 5‑pin SOT23‑5 micropackage.
From: STMicroelectronics TS951/TS952/TS954 Operational Amplifier Datasheet
What is the operating supply voltage range for the TS951‑TS952‑TS954 amplifiers?
They operate from 2.7 V up to 12 V.
From: STMicroelectronics TS951-TS952-TS954 Operational Amplifier Datasheet
What is the maximum output short‑circuit current?
The output short‑circuit current is limited to 10 mA.
From: STMicroelectronics TS951-TS952-TS954 Operational Amplifier Datasheet
