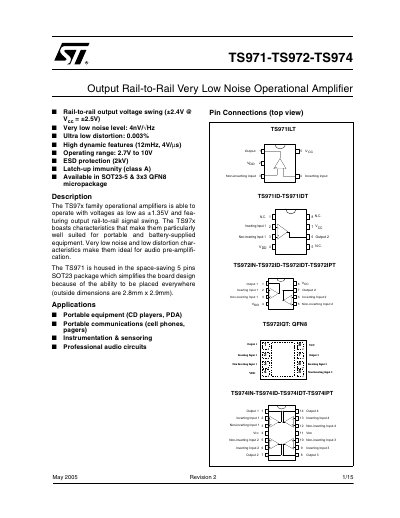

STMicroelectronics TS971/TS972/TS974 Operational Amplifier Datasheet
The TS97x family of operational amplifiers from STMicroelectronics offers rail‑to‑rail output swing, ultra‑low noise (4 nV/√Hz) and very low distortion (0.003 %). These features make the devices suitable for portable, battery‑powered equipment and audio pre‑amplification. The three variants – TS971, TS972 and TS974 – are available in several compact packages such as SOT23‑5, QFN8, DIP8, TSSOP8 and TSSOP14.
The datasheet details absolute maximum ratings, electrical characteristics (gain‑bandwidth product up to 12 MHz, slew rate 4 V/µs, supply current 2.8 mA), and mechanical dimensions for each package. Order codes, temperature ranges, and revision history are also included.
STMicroelectronics TS971-TS972-TS974 specifications
| Output voltage swing | ±2.4 V @ VCC = ±2.5 V |
|---|---|
| Noise level | 4 nV/√Hz |
| Total harmonic distortion | 0.003 % |
| Operating voltage range | 2.7 V to 10 V |
| Output source current | 1.5 mA |
| Output sink current | 100 mA |
Source: STMicroelectronics TS971/TS972/TS974 Operational Amplifier Datasheet
All STMicroelectronics TS971-TS972-TS974 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the output voltage swing of the TS97x amplifiers?
The TS97x devices provide a rail‑to‑rail output swing of ±2.4 V when powered at ±2.5 V.
From: STMicroelectronics TS971/TS972/TS974 Operational Amplifier Datasheet
What is the supply voltage range for the TS971/TS972/TS974 amplifiers?
The amplifiers operate from 2.7 V up to 10 V supply voltage.
From: STMicroelectronics TS971/TS972/TS974 Operational Amplifier Datasheet
Which package options are available for these amplifiers?
They are offered in SOT‑23‑5, QFN8, DIP‑8, SO‑8 and DFN8 packages.
From: STMicroelectronics TS971/TS972/TS974 Operational Amplifier Datasheet
