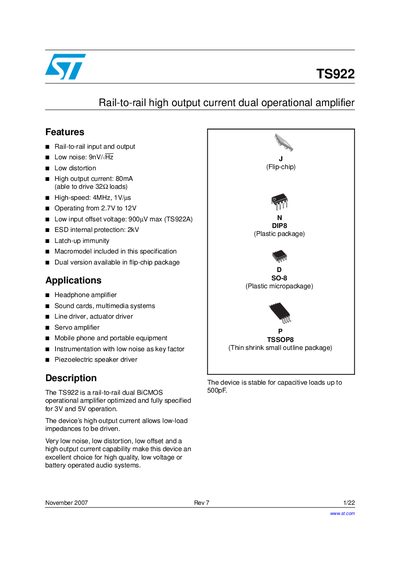

STMicroelectronics TS922 Datasheet
The TS922 is a rail‑to‑rail dual BICMOS operational amplifier optimized for 3 V and 5 V operation. It offers rail‑to‑rail input and output, low noise (9 nV/√Hz), low distortion, and a high output current of 80 mA, making it suitable for audio, headphone, and driver applications.
The document includes pin diagrams for multiple packages, absolute maximum ratings, detailed electrical characteristics such as gain‑bandwidth product (4 MHz) and input offset voltage (0.9 mV), as well as application notes and revision history. It also contains legal and warranty information for ST products.
STMicroelectronics TS922 specifications
| Input type | Rail‑to‑rail input and output |
|---|---|
| Noise density | 9 nV/√Hz |
| Output current | 80 mA |
| Supply voltage range (operating) | 2.7 V to 12 V |
| Maximum supply voltage (absolute max) | 14 V |
All STMicroelectronics TS922 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum supply voltage for the TS922?
The absolute maximum supply voltage is 14 V, while the recommended operating range is 2.7 V to 12 V.
What is the maximum supply voltage the TS922 can tolerate?
The absolute maximum supply voltage is 14 V.
From: STMicroelectronics TS922 Dual Operational Amplifier Datasheet
How much output current can the TS922 deliver?
The device can source up to 80 mA of output current.
From: STMicroelectronics TS922 Dual Operational Amplifier Datasheet
