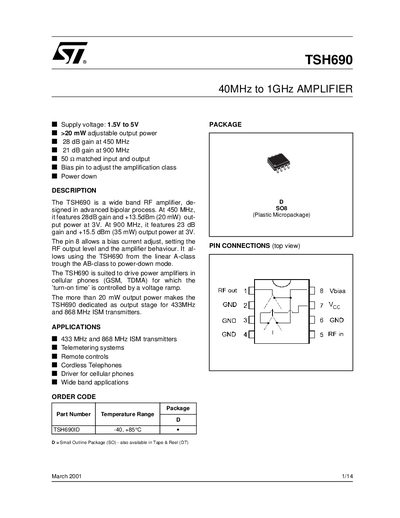

STMicroelectronics TSH690 40MHz‑to‑1GHz Amplifier Handbook
The TSH690 is a wide‑band RF amplifier covering 40 MHz to 1 GHz, offering up to 28 dB gain at 450 MHz and 21 dB gain at 900 MHz with adjustable output power above 20 mW. It can be biased for Class A, A‑B, or power‑down operation via the Vbias pin, making it suitable for ISM transmitters, cellular phone drivers, remote controls, and other wide‑band applications.
The handbook includes electrical characteristics, absolute maximum ratings, pin connections, package information, schematic diagrams, dissipation calculations, and detailed PCB layout recommendations. Mechanical dimensions of the plastic micropackage (SO) and ordering information are also provided.
STMicroelectronics TSH690 specifications
| Frequency Range | 40 MHz to 1 GHz |
|---|---|
| Supply Voltage Range | 1.5 V to 5 V |
| Gain at 450 MHz | 28 dB (Typical) |
| Output Power at 900 MHz | +15.5 dBm (35 mW) at 3V |
| Operating Temperature Range | -40 to +85 °C |
Source: STMicroelectronics TSH690 40MHz to 1GHz Amplifier Datasheet
All STMicroelectronics TSH690 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the typical gain of the TSH690 at 450 MHz?
The typical power gain (S21) at 450 MHz is 28 dB.
From: STMicroelectronics TSH690 40MHz to 1GHz Amplifier Datasheet
How does the bias pin affect the amplifier's operation?
The bias pin allows adjusting the current consumption and amplification mode from linear A-class through AB-class to power-down mode.
From: STMicroelectronics TSH690 40MHz to 1GHz Amplifier Datasheet
What is the operating frequency range of the TSH690 amplifier?
The device operates within a signal range from 40 MHz to 1000 MHz.
What is the maximum supply voltage for this amplifier?
The absolute maximum rating for supply voltages and bias voltage is 5.5 V.
What bias voltage range should be used for the TSH690?
The amplifier can be powered with a supply voltage from 1.5 V up to 5 V, and the bias pin allows adjustment within this range.
What DC‑blocking capacitor values are recommended for the RF ports?
Use 100 pF above 500 MHz, 1 nF below 500 MHz, and 10 nF for frequencies lower than 100 MHz.
