Start here

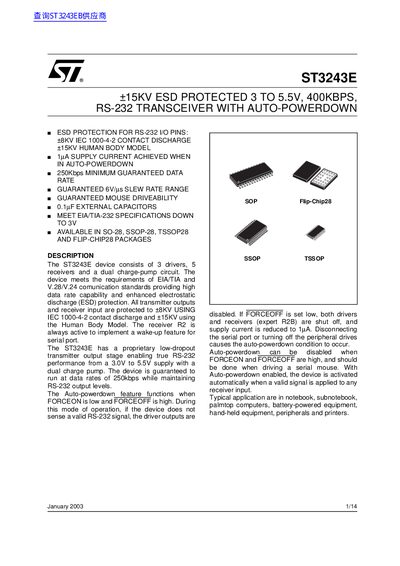

ST ST3243E ±15KV ESD PROTECTED 3 TO 5.5V 400KBPS RS-232 TRANSCEIVER WITH AUTO-POWERDOWN handbook(1)
The ST3243E is a low-dropout RS-232 transceiver designed for operation from a 3.0V to 5.5V supply voltage. It features enhanced electrostatic discharge (ESD) protection, rated at +15KV Human Body Model and +8KV Contact Discharge, ensuring robust performance in portable devices.
The device includes three drivers and five receivers with an integrated dual charge-pump circuit. A key feature is the auto-powerdown function, which disables driver outputs to reduce supply current to 1A when no valid signal is detected, making it ideal for battery-powered equipment.
STMicroelectronics ST3243E specifications
| Supply Voltage Range | 3.0V to 5.5V |
|---|---|
| ESD Protection (Human Body Model) | +15 KV |
| ESD Protection (Contact Discharge) | +8 KV |
| Supply Current (Auto-powerdown) | 1A |
| Number of Drivers and Receivers | 3 drivers, 5 receivers |
All STMicroelectronics ST3243E documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the minimum supply voltage for the ST3243E?
The device operates with a supply voltage ranging from 3.0V to 5.5V.
What packages are available for the ST3243E?
The device is available in SO-28, SSOP-28, TSSOP28, and Flip-Chip28 packages.
What is the supply voltage range for the ST3243E?
The device operates from a 3.0V to 5.5V supply.
From: ST ST3243E 15KV ESD PROTECTED 3 TO 5.5V 400KBPS RS-232 TRANSCEIVER WITH AUTO-POWERDOWN handbook
What packages is the ST3243E available in?
It is available in SO-28, SSOP-28, TSSOP28 and Flip-Chip28 packages.
From: ST ST3243E 15KV ESD PROTECTED 3 TO 5.5V 400KBPS RS-232 TRANSCEIVER WITH AUTO-POWERDOWN handbook
