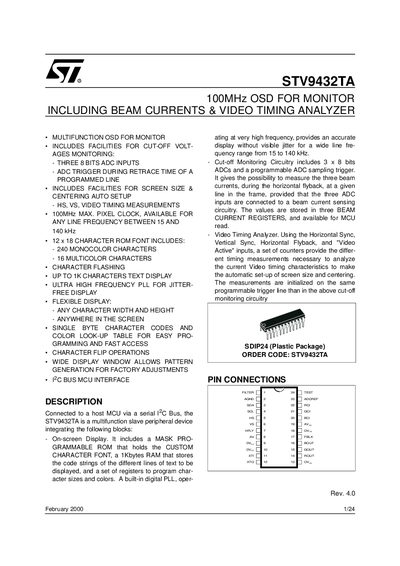

STMicroelectronics STV9432TA Datasheet
Datasheet 25 pages · 158 KB · EN
The STV9432TA is a multifunction slave peripheral device designed for monitors, featuring an On-Screen Display (OSD) with programmable ROM fonts and RAM for text display. It supports high-frequency operation up to 100MHz pixel clock and includes facilities for cut-off voltage monitoring via three 8-bit ADC inputs.
Read onlineSTMicroelectronics STV9432TA specifications
| Max Pixel Clock Frequency | 100 MHz |
|---|---|
| Line Frequency Range | 15 to 140 kHz |
| Operating Temperature | 0, +70 °C |
| Supply Voltage (AVpp, DVpp, OVpp) | 4.75 to 5.25 V |
| ADC Inputs | Three 8 bits ADC inputs |
| I2C Slave Address | BA (hexadecimal) |
All STMicroelectronics STV9432TA documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum pixel clock frequency?
The device supports a maximum pixel clock of 100 MHz.
Does it include beam current monitoring?
Yes, it includes facilities for cut-off voltages monitoring with three 8-bit ADC inputs connected to a beam current sensing circuitry.
What is the slave address of the STV9432TAP?
The slave address of the STV9432TAP is BA (in hexadecimal).
Does the device support cut-off voltage monitoring?
Yes, it includes facilities for cut-off voltage monitoring with three 8-bit ADC inputs.
