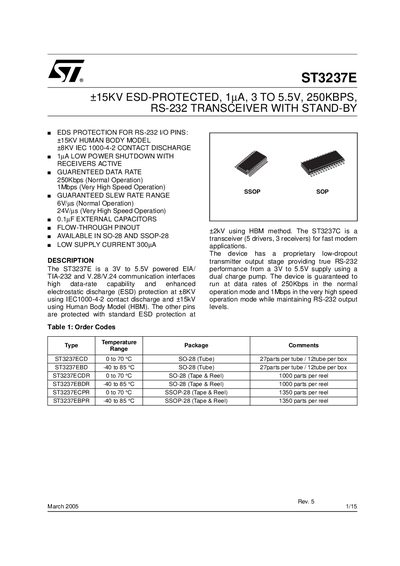

STMicroelectronics ST3237E RS-232 Transceiver Datasheet
The ST3237E is a high data-rate RS-232 transceiver designed for operation with a 3V to 5.5V supply. It features enhanced electrostatic discharge (ESD) protection, rated at +15KV for the Human Body Model and +8KV for IEC 1000-4-2 contact discharge. The device utilizes a proprietary low-dropout transmitter output stage and a dual charge pump to achieve true RS-232 performance from low-voltage supplies.
Read onlineSTMicroelectronics ST3237E specifications
| Supply Voltage | 3V to 5.5V |
|---|---|
| ESD Protection (HBM) | +15 kV |
| ESD Protection (Contact Discharge) | +8 kV |
| Operating Temperature | -40 to 85°C |
Source: STMicroelectronics ST3237E RS-232 Transceiver Datasheet
All STMicroelectronics ST3237E documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum data rate of the ST3237E?
The device supports a guaranteed data rate of 250Kbps in normal operation and up to 1Mbps in very high speed operation mode.
From: STMicroelectronics ST3237E RS-232 Transceiver Datasheet
What supply voltage range is supported?
The ST3237E is powered by a supply voltage ranging from 3V to 5.5V.
From: STMicroelectronics ST3237E RS-232 Transceiver Datasheet
What is the minimum supply voltage for the ST3237E?
The device operates with a supply voltage ranging from 3V to 5.5V.
From: STMicroelectronics ST3237E RS-232 Transceiver Datasheet
How does the ST3237E achieve RS-232 levels from a 3V supply?
It uses a proprietary low-dropout transmitter output stage providing true RS-232 performance from a 3V to 5.5V supply using a dual charge pump.
From: STMicroelectronics ST3237E RS-232 Transceiver Datasheet
Can the ST3237E operate at higher speeds?
Yes, it can run at data rates of 1Mbps in very high speed operation mode.
From: STMicroelectronics ST3237E RS-232 Transceiver Datasheet
What are the ESD protection ratings for I/O pins?
The device provides +15kV HBM and +8kV IEC 1000-4-2 contact discharge protection.
From: STMicroelectronics ST3237E RS-232 Transceiver Datasheet
