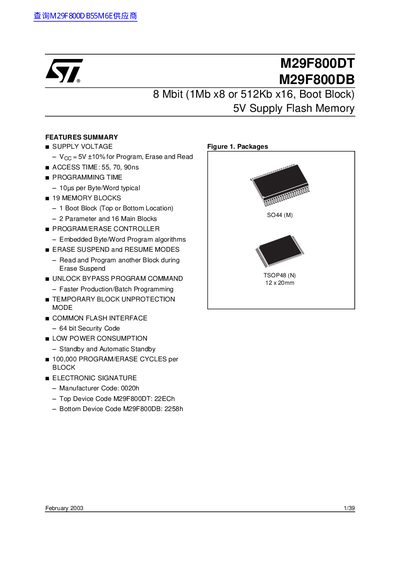

STMicroelectronics M29F800DB Flash Memory Datasheet
The M29F800D is an 8 Mbit (1Mb x8 or 512Kb x16) non-volatile memory that can be read, erased, and reprogrammed using a single 5V supply. The device features embedded byte/word program algorithms, erase suspend/resume modes, and a common flash interface with security codes.
The memory is divided into blocks that can be erased independently to preserve valid data. Each block can also be protected independently to prevent accidental modification. The M29F800DB specifically utilizes the bottom boot block configuration.
STMicroelectronics M29F800DB specifications
| Memory Size | 8 Mbit (1Mb x8 or 512Kb x16) |
|---|---|
| Supply Voltage | 5V +10% |
| Access Time | 55, 70, 90ns |
| Programming Time | 10us per Byte/Word typical |
| Program/Erase Cycles | 100,000 cycles per block |
| Manufacturer Code | 0020h |
All STMicroelectronics M29F800DB documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage for the M29F800DB?
The device operates with a single 5V supply voltage.
How many program/erase cycles can the memory endure?
The memory supports 100,000 program/erase cycles per block.
What is the manufacturer code for this device?
The Manufacturer Code is 0020h.
What is the device code for the M29F800DB model?
The Top Device Code for M29F800DB is 2258h.
What is the supply voltage for the M29F800DT/DB devices?
The devices operate from a 5 V supply, with a tolerance of +10 % for programming, erasing, and reading.
How many program/erase cycles can each memory block endure?
Each block is rated for 100 000 program/erase cycles.
