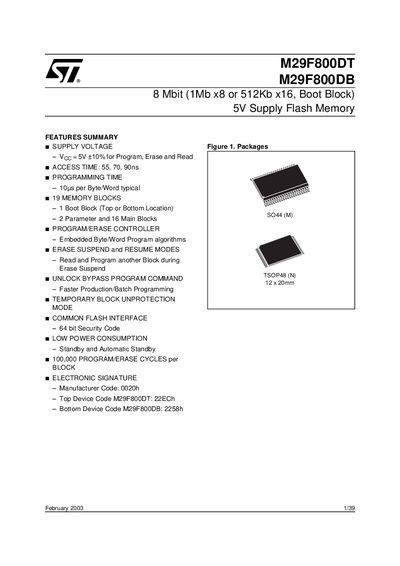

STMicroelectronics M29F800DB Flash Memory Datasheet

This document describes the features and characteristics of the 8 Mbit flash memory models M29F800DT and M29F800DB, including supply voltage, access time, programming time, memory block quantity, programming/erase controller, unlock bypass program command, etc.

Brand: STMicroelectronics
Category: Flash Memory
Document type: Datasheet
Language: English
Pages: 40
File format: PDF
File size: 259 KB
Published: 07 June, 2012
Updated: 29 September, 2023
Model: M29F800DB
MD5 checksum: 72DD85C1ADF7CFEB999FCC51487A034C
PDF: STMicroelectronics M29F800DB Flash Memory Datasheet PDF

About this manual

The document is a technical datasheet for the M29F800DT and M29F800DB series of 8 Mbit (1Mb x8 or 512Kb x16) non-volatile flash memory devices manufactured by STMicroelectronics. These devices operate with a single 5V supply voltage and support read, erase, and reprogram operations.

What's inside

Summary Description
SIGNAL DESCRIPTIONS
BUS OPERATIONS
COMMAND INTERFACE
STATUS REGISTER
MAXIMUM RATING
DC and AC PARAMETERS
PACKAGE MECHANICAL
PART NUMBERING
APPENDIX A. BLOCK ADDRESS TABLE

Specifications

Memory Capacity	8 Mbit (1Mb x8 or 512Kb x16)
Supply Voltage	5V +10%
Access Time	55, 70, 90ns
Programming Time	10us per Byte/Word typical
Program/Erase Cycles	100,000 cycles per block

Frequently asked questions

What is the manufacturer code for this device?

The Manufacturer Code is 0020h.

What is the device code for the M29F800DB model?

The Top Device Code for M29F800DB is 2258h.

What packages are available for this memory?

The memory is offered in SO44 and TSOP48 (12 x 20mm) packages.
