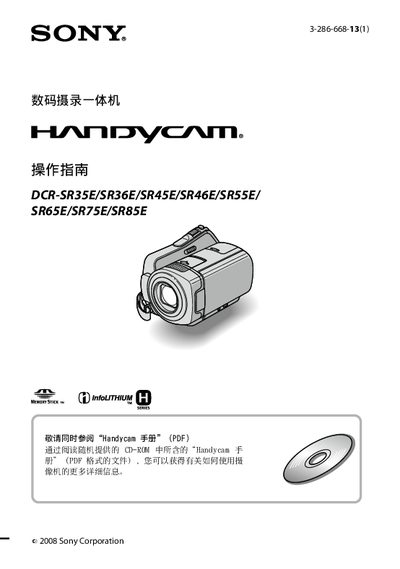

This document is an operation guide for Sony digital camcorders DCR-SR35E/SR36E/SR45E/SR46E/SR55E/SR65E/SR75E/SR85E. The document provides detailed information on how to use the camcorder and includes some usage precautions.
The manual explains how to safely use the Sony DCR‑SR series camcorders, covering warnings, battery handling, power connections, and basic operation. It also references the full Handycam handbook for more detailed camera functions.
Key sections include safety precautions, battery charging, power‑on procedures, language selection, recording and playback, memory‑card compatibility, USB/PC connection, and troubleshooting tips. Technical specifications and trademark information are listed at the end of the document. This manual is written in Chinese.
| Input/Output Connectors | A/Y 00T video/audio output jack |
|---|---|
| Power Adapter Model | AC‑L200 / L200B |
| Power Consumption | 18 W |
| Operating Temperature | 0 °C to 40 °C |
| Dimensions (approx.) | 48 × 29 × 81 mm (W × H × D) |
| Weight (approx.) | 170 g |
| Battery Max Output Voltage | DC 8.4 V |
| Battery Capacity | 4.9 Ah (880 mAh) |
Connect the AC adapter to the camcorder’s DC IN jack and rotate the POWER switch to OFF (CHG); the CHG indicator will light while charging and turn off when the battery is full.
The camcorder supports Memory Stick PRO Duo cards up to 8 GB; both the standard PRO Duo and PRO‑HG Duo formats are accepted.
Recording and playback times may be reduced at low temperatures, but the device will still operate within the specified temperature range.
