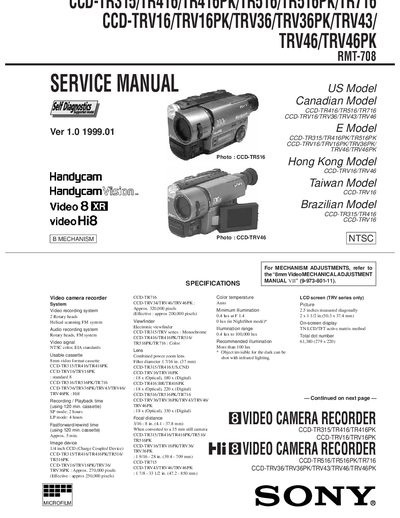

This document is a service manual for CCD-TR315/TR416/TR416PK/TR516/TR516PK/TR716 CCD-TRV16/TRV16PK/TRV36/TRV36PK/TRV43/TRV46/TRV46PK, describing the technical specifications and features of these models.
This service manual provides detailed repair, diagnostic, and disassembly instructions for Sony CCD‑TRV series camcorders, covering models such as TRV16, TRV36, TRV43 and TRV46. It includes safety checks, power‑supply handling, self‑diagnosis procedures, and parts reference sheets.
The document also lists supplied accessories, power requirements, operating specifications, and block diagrams of the camera’s electronic subsystems, helping technicians troubleshoot and maintain the devices efficiently.
| Power requirements (battery) | 7.2 V |
|---|---|
| Power requirements (AC adaptor) | 8.4 V, 1.5 A |
| Operating temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Storage temperature | -4 °F to +140 °F (‑20 °C to +60 °C) |
| Total LCD dot count | 61,380 (279 × 220) |
| Minimum illumination (NightShot) | 0 lux (infrared lighting required) |
| Minimum illumination (normal mode) | 0.4 lux at F 1.4 |
