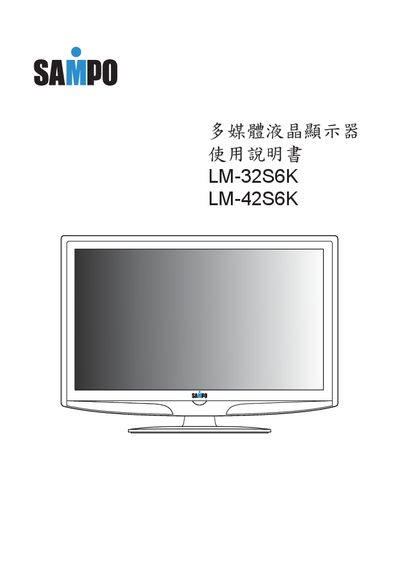

Sampo LM-32S6K / LM-42S6K Multimedia LCD User Manual
This manual provides safety guidelines and proper handling instructions for the Sampo LM-32S6K and LM-42S6K LCD monitors. It explains how to connect power, avoid static discharge, and maintain adequate ventilation to prevent overheating.
The document also describes the on‑screen display (OSD) functions, supported video and audio inputs (HDMI, VGA, D‑Sub, mini‑jack), and lists the technical specifications such as brightness, contrast, resolution, power consumption, and dimensions. This manual is written in Chinese.
Sampo LM-32S6K specifications
| Screen Size | 32" / 42" |
|---|---|
| Contrast Ratio | 4000:1 (32") / 4500:1 (42") |
| Supported Video Resolutions | 480p, 720p, 1080p |
| Power Input | AC 110 V, 60 Hz |
| Dimensions (without stand, 32" model) | 783 mm × 99 mm × 511 mm |
Source: Sampo LM-32S6K / LM-42S6K Multimedia LCD Owner's Manual
All Sampo LM-32S6K documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What ventilation clearance is recommended when mounting the display on a wall?
Leave at least 10 cm of space on each side and below the unit, and 30 cm above the unit for proper airflow.
From: Sampo LM-32S6K / LM-42S6K Multimedia LCD Owner's Manual
What ventilation clearances are required for proper cooling?
Maintain at least 10 cm of clearance on the front and rear sides and 30 cm above the unit.
