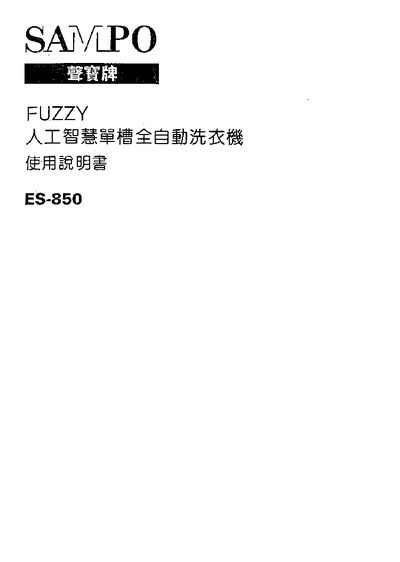

Sampo ES-850 Washing Machine Manual
This manual covers safety precautions, proper installation, and connection of water supply and drainage for the ES-850 washing machine. It explains how to adjust the legs, ensure a flat floor, and securely attach inlet and outlet hoses.
Operating instructions describe loading clothes, selecting wash programs, adjusting water levels, and using the control panel functions. The guide also includes troubleshooting advice and a specification table for power, dimensions, water consumption, and required water pressure. This manual is written in Chinese.
Sampo ES-850 specifications
| Power supply | AC110V / 60Hz |
|---|---|
| Power consumption | 530W |
| Dimensions (W×H×D) | 598×956×643 mm |
| Weight | 41 kg |
| Standard water consumption | 193 L |
| Water level capacities | 88L (high), 75L (medium), 61L (low), 48L (small) |
| Water pressure | 0.3‑8 Kgf/cm² |
| Washing method | Bubble + wash drum |
All Sampo ES-850 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How should the washing machine be installed?
Install the unit on a level, sturdy floor, ensure ventilation holes are not blocked, connect the drain hose to the machine’s drain port, and plug the power cord into a grounded outlet.
How should I install the ES-850 washing machine?
Place the machine on a flat floor, adjust the legs for balance, and connect the water inlet and drain hoses securely as described in the installation section.
What can cause the machine not to spin?
If the load is unbalanced or the machine is not level, the spin cycle may stop. Ensure clothes are evenly distributed and the unit is on a stable surface.
