Key facts
- Brand
- Sampo
- Model
- ES-121
- Category
- Washing Machines
- Documents
- 2
- Languages
- ZH
- Last added
- 2012-03-20
Start here

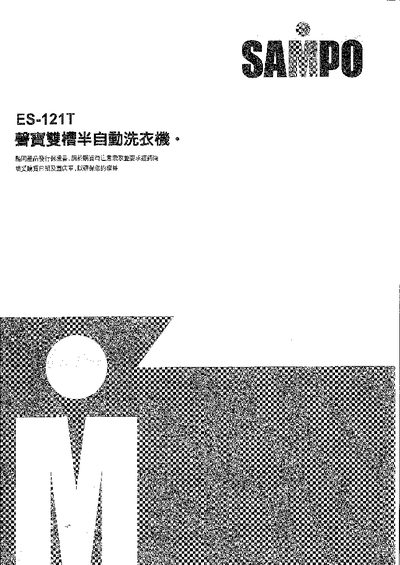

Sampo ES-121T Washing Machine User Manual
This manual covers essential safety precautions, proper installation requirements, and detailed operation of the ES-121T washing machine, including control panel functions, water level settings, and spin cycle procedures. It also lists maintenance tips and warnings to ensure safe and reliable use.
Additional sections provide a quick‑start guide, troubleshooting steps for common issues such as no water fill or drainage problems, and a full specification table with electrical, mechanical and capacity data. This manual is written in Chinese.
Sampo ES-121 specifications
| Power Supply | 110V/60Hz |
|---|---|
| Washing Power Consumption | 370 W |
| Spin Power Consumption | 200 W |
| Rated Current | 3.0 A (wash) / 1.9 A (spin) |
| Water Pressure | 0.03 < 0.8 MPa |
| Weight | 38 kg |
| Standard Water Amount | High 90 L / Medium 80 L / Low 70 L / Small 60 L |
| Dimensions (W×D×H) | 924 mm × 542 mm × 1025 mm |
| Maximum Load Capacity | 12 kg |
| Inlet Water Temperature | Normal (5‑35 °C) |
All Sampo ES-121 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Why does the washing machine not fill with water?
Check that the water tap is turned on, that water supply is available, and that the inlet hose is correctly connected.
What should I do if the machine makes unusual noises or smells during operation?
Immediately disconnect the power cord and contact the Sampo service center for repair.
