Key facts
- Brand
- Sampo
- Model
- SR-583QD
- Industry
- Appliances
- Documents
- 2
- Languages
- ZH
- Last added
- 2012-03-19
Start here

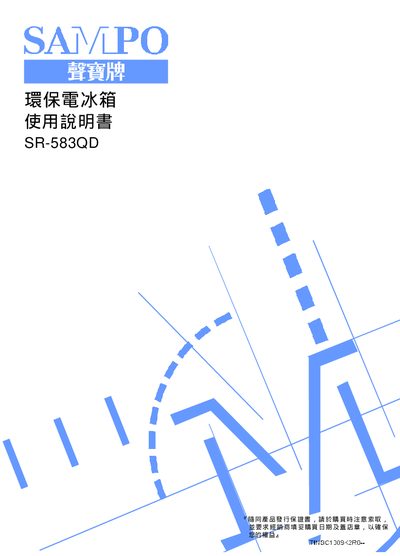

Sampo SR-583QD Refrigerator User Manual
This manual explains how to install and set up the environmentally friendly Sampo SR-583QD refrigerator, including placement requirements, ventilation spacing, and adjustment of temperature controls. It also describes the functions of each compartment such as the freezer, fresh‑food, and beverage sections.
Safety guidelines cover electrical grounding, avoiding flammable substances, and proper handling of the door and interior components. Maintenance instructions detail regular cleaning of the drain pipe, deodorization system, and periodic checks to prevent leaks or abnormal odors. A troubleshooting section lists common issues and recommended checks, while the specifications page provides detailed technical data for the model. This manual is written in Chinese.
Sampo SR-583QD specifications
| Rated Voltage | 110 V |
|---|---|
| Rated Frequency | 60 Hz |
| Motor Power Consumption | 165 W |
| Heater Power Consumption | 140 W |
| Total Capacity | 580 L |
| Freezer / Fresh‑Food / Vegetable Compartment Volumes | 153 L / 302 L / 125 L |
| Monthly Power Consumption | 72 kWh |
| Energy Efficiency Index | 9.71 L/kWh·month |
| Refrigerant Charge | 145 g |
| Product Weight | 95 kg |
All Sampo SR-583QD documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How often should the drain pipe be cleaned?
The drain pipe should be cleaned regularly, about once a month.
What safety precaution is required when using the refrigerator near flammable substances?
Do not store flammable items such as gasoline, alcohol, or gasoline‑based liquids inside the refrigerator.
How often should the drainage pipe be cleaned?
The drainage pipe should be removed and cleaned regularly, about every six months to one year, to prevent blockage and mold growth.
What can be stored in the ice box compartment?
The ice box compartment can hold approximately 1 kg of ice cubes.
