Start here

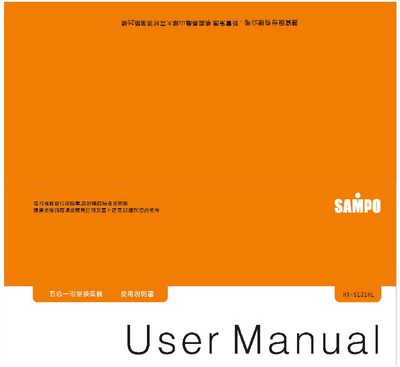

Sampo HX-S131HL Bathroom Heater User Manual
This manual explains how to install the Sampo HX‑S131HL bathroom heater safely, including mounting the unit on the ceiling, connecting power and control cables, and securing the ventilation duct. It also details the required clearances, wiring specifications, and the need for professional installation.
Operating instructions cover the heating, ventilation and lighting functions, timer settings, and emergency shutdown procedures. Maintenance guidance includes cleaning, lamp replacement, and safety checks before service. This manual is written in Chinese.
Sampo HX-S131HL specifications
| Input Voltage | AC110V |
|---|---|
| Frequency | 60 Hz |
| Panel Size | 480 mm × 320 mm |
| Body Size | 430 mm × 300 mm |
| Height | 170 mm |
| Lamp Type | AC110V/60Hz/40W lamp (45 mm × 72 mm) |
All Sampo HX-S131HL documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I operate the heating function?
Press the heating button once for low heat, twice for high heat, and a third time to turn it off.
How can I set the timer?
Press the timer button; each press increases the setting by 0.5 hour increments up to 8 hours.
How should I clean the HX‑S131HL unit?
Turn off the power switch first, then use a neutral cleaner and a soft cloth to gently wipe the unit.
From: Sampo HX-S131HL Five-in-One Bathroom Ventilation Machine User Manual
What type of lamp bulb is required for replacement?
Use an AC110V / 60Hz 40W lamp with a diameter of 45 mm and a height of 72 mm.
From: Sampo HX-S131HL Five-in-One Bathroom Ventilation Machine User Manual
