Key facts
- Brand
- Sampo
- Model
- SR-50
- Category
- Refrigerators
- Industry
- Appliances
- Documents
- 6
- Languages
- ZH
- Last added
- 2012-03-19
Start here

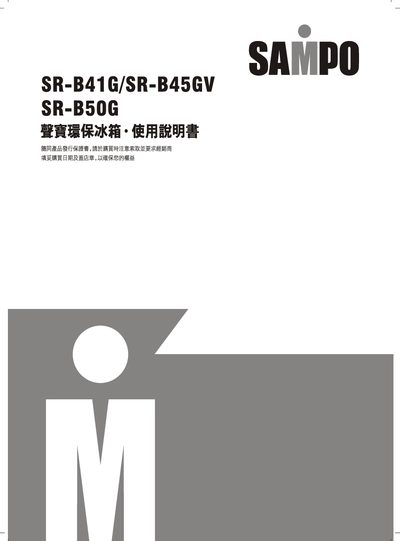

Sampo SR-B41G / SR-B45GV / SR-50G Refrigerator User Manual
This manual covers safety precautions such as grounding the unit, avoiding direct water cleaning, and keeping the appliance away from direct sunlight. It also explains proper installation on level floors, the need for ventilation, and the correct power source (110 V, 10 A minimum).\n\nOperating instructions describe how to use the deodorization and nano‑silver sterilization functions, the layout of compartments, and how to maintain the refrigerator. Troubleshooting tips help identify common faults, and a full specification table lists electrical and physical parameters for each model. This manual is written in Chinese.
Read onlineSampo SR-50 specifications
| Rated Voltage (V) | 110 |
|---|---|
| Rated Frequency (Hz) | 60 |
| Motor Rated Power (W) | 145 (SR‑B41G), 155 (SR‑B45GV), 160 (SR‑50G) |
| Heater Rated Power (W) | 130 (SR‑B41G), 130 (SR‑B45GV), 140 (SR‑50G) |
| Net Capacity (L) | 410 (SR‑B41G), 450 (SR‑B45GV), 500 (SR‑50G) |
| Monthly Energy Consumption (kWh/month) | 62 (SR‑B41G), 64.1 (SR‑B45GV), 68 (SR‑50G) |
| Energy Efficiency Index (kWh/month) | 8.12 (SR‑B41G), 8.48 (SR‑B45GV), 9.05 (SR‑50G) |
| Refrigerant | R‑134a |
| Product Weight (kg) | 66 (SR‑B41G), 75 (SR‑B45GV), 78 (SR‑50G) |
Source: Sampo SR-B41G / SR-B45GV / SR-50G Refrigerator User Manual
All Sampo SR-50 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- Sampo SR-B41G / SR-B45GV / SR-50G Refrigerator User Manual 16 p
- Sampo SR-56HM SR-56HMD SR-50HMD Refrigerator User Manual 8 p
- Sampo SR-50 / SR-76 Refrigerator User Manual 10 p
- Sampo SR-505G Refrigerator User Manual 16 p
- Sampo RFB-50A SR-5001 Refrigerator User Manual 8 p
- Sampo SR-561QD SR-501QD Refrigerator User Manual 14 p
Questions answered in these manuals
How should the refrigerator be installed?
Place the unit on a flat surface, keep it in a well‑ventilated area, maintain at least 10 cm clearance from walls, use a dedicated 110 V outlet, and connect a grounding wire.
From: Sampo SR-56HM SR-56HMD SR-50HMD Refrigerator User Manual
What should I do if the refrigerator is not cooling properly?
Check that the refrigerator is not placed in a hot location, avoid over‑loading, keep the door closed, ensure the temperature knob is set correctly, and verify the power supply and grounding.
From: Sampo SR-56HM SR-56HMD SR-50HMD Refrigerator User Manual
How should the refrigerator be installed on a soil floor?
Place a 10 cm thick wooden board under the unit to raise it and prevent rust or electrical issues.
What must be done if the refrigerator leaks gas?
Close the gas valve, open doors and windows to ventilate, and stop using the appliance immediately.
How often should the drain pipe be cleaned?
Clean the drain connector every six to twelve months to prevent blockage and maintain proper drainage.
What is the monthly electricity consumption of the refrigerator?
The refrigerator consumes about 72 kWh per month.
