Key facts
- Brand
- Sampo
- Model
- SK-H12LM
- Documents
- 2
- Languages
- ZH
- Last added
- 2012-03-19
Start here

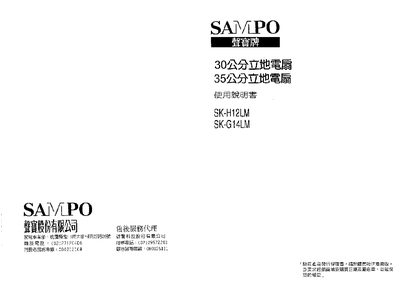

Sampo SK-H12LM / SK-G14LM Fan User Manual
This manual provides step‑by‑step instructions for assembling the front and rear grids, installing the base, and connecting the power supply. It also explains how to operate the fan, adjust wind speed, set timers, and handle emergency stop situations.
Safety precautions, cleaning guidelines, and storage instructions are included to ensure reliable long‑term use. A specifications table lists voltage, power consumption, speed, airflow, swing angle, timer settings, cord length, weight and dimensions for both models. This manual is written in Chinese.
Sampo SK-H12LM specifications
| Voltage | AC110V 60Hz |
|---|---|
| Power Consumption | 48W (SK-H12LM), 53W (SK-G14LM) |
| Speed (rpm) | ≥170 rpm (SK-H12LM), ≥185 rpm (SK-G14LM) |
| Airflow (m³/min) | ≥35 m³/min (SK-H12LM), ≥40 m³/min (SK-G14LM) |
| Swing Angle | 0~90° (SK-H12LM), 10~90° (SK-G14LM) |
| Timer Settings | 1, 2, 4 hours (both models) |
| Power Cord Length | ≥1.8 m (SK-H12LM), ≥2.0 m (SK-G14LM) |
| Weight | 3.5 kg (SK-H12LM), 5.0 kg (SK-G14LM) |
| Dimensions (mm) | 670‑850 × 370 mm (SK-H12LM), 775‑1000 × 430 mm (SK-G14LM) |
All Sampo SK-H12LM documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I start and control the fan speed?
Press the wind‑speed button to start; each press cycles through the speed settings. Use the timer button to set automatic shut‑off.
How should I clean the fan?
Wipe the body with a soft cloth dampened with water or a neutral detergent, then dry with a clean cloth; avoid solvents, gasoline or abrasive cleaners.
